High Flexible Smooth Textile Braided 20bar 300psi Air Water Fuel Oil Sandblasting Suction Discharge Steel Wire Braided Hydraulic PVC Flat Plastic Rubber Hose

Product Description

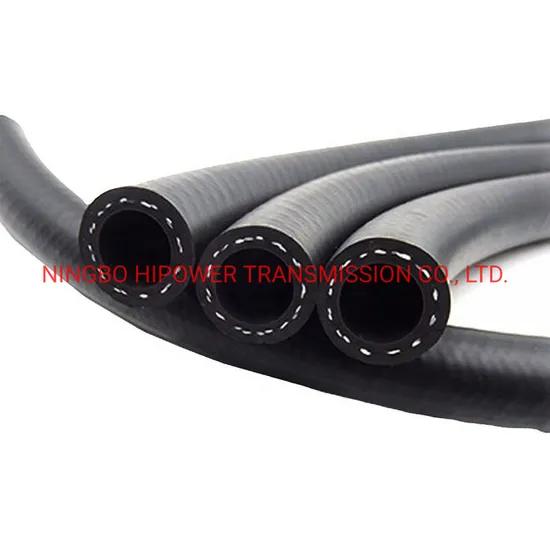

AIR / WATER / FUEL / OIL RUBBER HOSE
Instroduction
. Tube: SBR blended black smooth or NBR black with oil resistance, acid & alkali resistance, reinforced with high tension textile.
. Cover: SBR/EPDM blended or NBR synthetic rubber with wearing resistance, ozone & ageing resistance, oil resistance, heat resistance.
. Application: used to deliver compressed air without or with oil mist, non crosive fluid, other general purpose
. Temperature range: -30 ºC to + 100ºC
Technical Data
Type: 20 Bar W.P.

Size(inch)	I.D. mm	O.D. mm	W.P. Bar	B.P. Bar	MBR mm	Weight kg/m	Length Max m
1/2	13	21	20	80	78	0.39	100
3/4	19	28	20	80	114	0.55	100
1	25	34	20	80	150	0.70	100
1-1/4	32	43	20	80	200	0.90	100
1-1/2	38	49	20	80	250	1.10	100
2	51	64	20	80	350	1.60	100
3	76	92	20	80	500	2.90	100
4	102	121	20	80	650	4.30	100
5	127	146	20	80	800	5.50	100
6	152	175	20	80	960	6.80	100

W.P. 10Bar.40Bar with the same sizes as above available
105ºC and 125ºC Heat Resistant Fuel/Oil Hose available
Production & Workshop

Packing & Warehouse

Loading & Transportation

Application

Other rubber hose products
Industrial Rubber Hose: Air / Water hose, Oil Fuel Hose, Welding Hose, Suction & Discharge Hose, Sandblasting Hose, PVC Flat Layflat Hose
Suction Rubber Hose Sandblasting Hose

Hydraulic Rubber Hose: SAE100R1AT, R2AT, RS/R6, R7/R8, 4SP/4SH/R12, R13/R15

FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products
Q2. What about the lead time of the sample or the final order?
3-7 days for normal samples
20-40 days for a formal order
Q3. How much is the minimum quantity for each item in one order?
100meters for each item
Q4. Is it possible to print your logo or brand on the hose?
Yes, we can print your log or design on the hose after receipt of your formal authorization.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all the listed rubber hose
