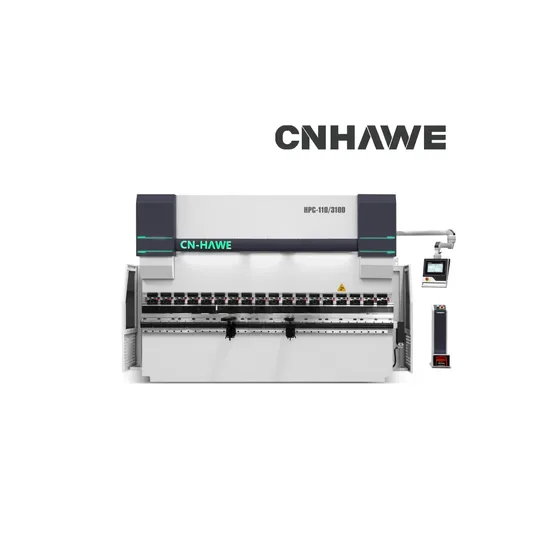

High Speed High Precision Hpc Series CNC Press Brake: Multi Axis High-Performance Hydraulic Bending Machine with Control Syetem (DELEM, ESA, CYBELEC)

Product Description

Product Description
HPC EconomiAc CNC Press Brake
Press brakes are a pivotal asset in the realm of sheet metal processing, serving the essential function of bending and deforming metal sheets into predetermined shapes and angles by exerting pressure. The quintessential components of press brakes include a robust workbench for sheet support, specifically designed molds aligned with the desired processed shape, and a sophisticated power system that delivers the requisite pressure and motion control. This trifecta ensures the precise bending of sheets, with bending accuracy and stability being paramount to the integrity of processed parts. Consequently, the design and manufacturing processes are executed with stringent precision to meet high standards of quality.
After over a decade of progressive developments, CNHAWE's electro-hydraulic servo control technology has ascended to unprecedented heights. In a panoramic view of the industry, this profound integration of technology with press brakes heralds a new epoch, continuously propelling the advancement of the sheet metal fabricating sector.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D)	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
HPC-65/2500	650	2500	200	240	20	240	2150	350	180	450	4.14	2710*1400*2400
HPC-110/3100	1100	3100	230	220	14	180	2600	410	220	490	7	3260*1540*2610
HPC-110/4000	1100	4000	230	220	14	180	3300	410	220	490	8.1	4060*1540*2610
HPC-135/4000	1350	4000	230	220	14	180	3300	410	220	490	8.3	4060*1540*2610
HPC-160/3100	1600	3100	230	200	16	180	2600	410	220	490	8.6	3270*1550*2700
HPC-160/4000	1600	4000	230	200	16	180	3300	410	220	490	9.9	4070*1550*2700
HPC-250/3100	2500	3100	230	140	12	160	2600	410	220	490	11.24	3280*1930*2740
HPC-250/4000	2500	4000	230	140	12	160	3300	410	220	490	12.8	4080*1930*2740

Detailed Photos
CNC Controller
With the implementation of manual quick clamps, our press brake facilitates the effortless and rapid replacement of upper punch tools. This innovation is a game-changer in saving time and notably enhancing operational efficiency.Main Servo Motor
Servo motors have become the vanguard technology within industrial automation. They deliver exceptional dynamic performance, boost machine production efficiency, and optimize energy usage, making them the favored choice for numerous enterprises. Compared to traditional motors, servo motors can achieve up to a 35% energy saving, enabling customers to significantly elevate efficiency while reducing operational expenses.Moreover, we offer Siemens high-efficiency energy-saving motors from Germany, tailored to fulfill regular production requirements. These motors surpass standard motor efficiency by leaps and bounds, markedly enhancing productivity. Their design incorporates cutting-edge technology to ensure stable and reliable performance, even under diverse operational conditions. Oil Pump
CNHAWE's oil pump, crafted from high-strength cast iron, assures stability and reliability under high pressure and load conditions. Its innovative internal design optimizes efficiency and performance through a precise mechanical structure and an enhanced process flow. The standout noise reduction feature of this pump ensures quieter operation, providing a serene working environment. Additionally, the oil pump boasts low sensitivity to oil contamination, maintaining functionality amidst oil impurities, thereby significantly prolonging its lifespan.Ball Screw & Guide
Our equipment features high-caliber ball screws and linear guide rails, ensuring seamless and robust performance. Collaborations with esteemed brands from Japan and Taiwan, China enhance the stability of our press brake's motion control, guaranteeing dependable operation.
Servo Hydraulic System
Within a CNC press brake, a comprehensive servo hydraulic system encompasses pivotal components such as the motor, oil pump, filter elements, valve group, hydraulic cylinders, and oil tank. Our strategic partnership with HAWE, an illustrious German manufacturer, provides a solid bedrock of high-performance, low-failure-rate products for our system. Furthermore, our hydraulic control system utilizes an electro-hydraulic servo synchronization design, achieving minimal intervals between hydraulic cylinders, bolstering eccentric load resistance, ensuring high-precision synchronization, and showcasing excellent power density ratios-all while maintaining cost-effectiveness.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
