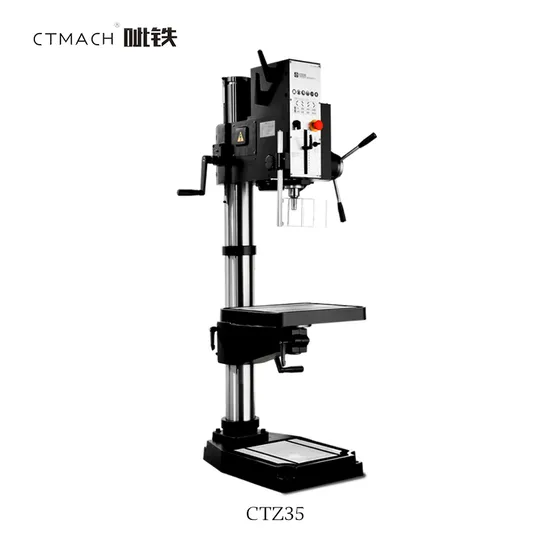

Ctz35 Vertical Standing Electric Borehole Drilling Machine
Basic Info.
Model NO.
CTZ35
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
560*680*1850mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
1000
Product Description
| Maximum drilling diameter | 35mm |
| Tapping the largest capacity (steel/casting) | M14/M18 |
| Workbench stroke | 510mm |
| Column diameter | 120mm |
| Spindle stroke | 150mm |
| Spindle taper | MT4 |
| Spindle speed | 75-3010rpm |
| Workbench size | 500×400mm |
| Base working surface size | 670×400mm |
| Spindle axis to column surface | 320mm |
| Maximum distance from spindle end to base | 960-1215mm |
| Maximum distance from spindle end to worktable | 880mm |
| The worktable rotates with the column | 0°-360° |
| Motor | 1.5/18.kg-380v |
| N.W./G.W. | 307/368kg |
| Machine size | 560mm×680×1850mm |
| Package Size | 1700×670×850mm |
