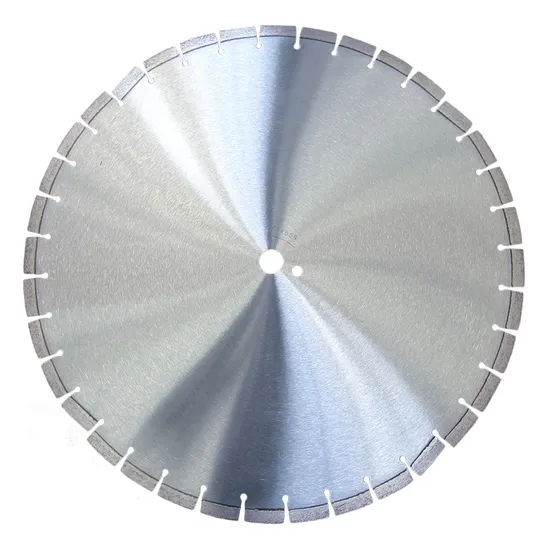

18 Inch 450mm Laser Welded Asphalt Diamond Saw Blades Fresh Concrete Cutting Disc

Product Description

12 inch 14 inch 16 inch 18 Inch 36 inch 300mm to 900mm Laser Welded Asphalt Diamond Saw Blades Fresh Concrete Cutting Disc
Application: Asphalt, fresh concrete, green concrete, asphalt with concrete, refractory bricks, other abrasive materials
* Higher quality diamond and long life
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Radius protection seg., slant protection seg., high protection seg..
* Other special specifications and colors can be produced by clients' require

Diameter		Seg. LxT(mm)	Seg. height	Seg.No.	Cutting Materials
12"	300mm	40*3.2	10/12mm	21	Asphalt/Green concrete
14"	350mm	40*3.2	10/12mm	24	Asphalt/Green concrete
16"	400mm	40*3.4	10/12mm	28	Asphalt/Green concrete
18"	450mm	40*3.6	10/12mm	32	Asphalt/Green concrete
20"	500mm	40*3.6	10/12mm	36	Asphalt/Green concrete

Diameter		Seg. LxT(mm)	Seg. height	Seg.No.	Cutting Materials
24"	600mm	40*4.0	10/12mm	42	Asphalt/fresh concrete
26"	650mm	40*4.2	10/12mm	42	Asphalt/fresh concrete
28"	700mm	40*4.6	10/12mm	45	Asphalt/fresh concrete
32"	800mm	40*4.8	10/12mm	52	Asphalt/fresh concrete
36"	900mm	40*4.8	10/12mm	60	Asphalt/fresh concrete

High quality diamond saw blade use for cut all kinds of non-metal material, marble, granite, tile, ceramic sandstone and so on, . Diamond cutting saw blade with different specification from 105mm~3000 mm can be supplied according to customers' requirements.
Company Information:
WUHAN WAN BANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacturer in professional diamond tools, Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
