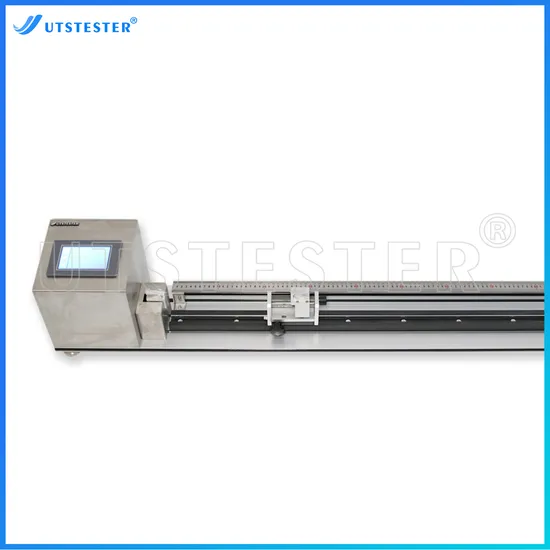

Textile Machine From China Digital Yarn Crimp Tester Yarn Length Testing Machine

Product Description

Product Description
• To measure the crimp degree of yarn in fabric.
• Take-up of yarn in fabric.
• Calculation of the count of yarns removed from fabrics
• Estimation of yarn usage in the production of fabrics
Standard

ASTM D3883, GB/T 29256.3, ISO 7211-5, ISO 7211-3

Working Principle
The thread straightening and measuring device, with 2 grips, the distance between two grips are adjustable, so as to apply the required tension on yarn.
Features
1. The instrument adopts microcomputer control measuring force, and the large screen liquid crystal displays the force value directly, the result is accurate and the reaction speed is fast.
2. The calibration procedure is advanced, and it is not necessary for the operator to make adjustments to complete the accurate calibration;
3. The machine is all-stainless steel body, beautiful and corrosion resistant;
4. The damping adjustable on the right mobile platform, support to adjust the damping size according to your needs;
Product Presentation
Product Parameters

Model	Y016
Sample length	1000mm
Capacity	200 cN
Display value resolution	0.1cN
Length sensor accuracy	1mm
Left and right gripper clamping distance	10mm ~ 1000mm
Force measuring error	±0.5%
Force value calibration weight	200cN
Display	Touch screen panel
Power supply	AC 220V±10% 50Hz 60W
Dimension (WxDxH)	1250*180*250mm
Weight	20Kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
