Small Combined Oil Expeller Machine From China

Product Description

180Kg per Hour Guangxin Oil Expeller Sunflower Oil Press Screw Oil Mill Machine Oil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine
30YEARS FACTORY OF OIL PRESS MACHINE ---Guangxin
Contact: Bella Zhang

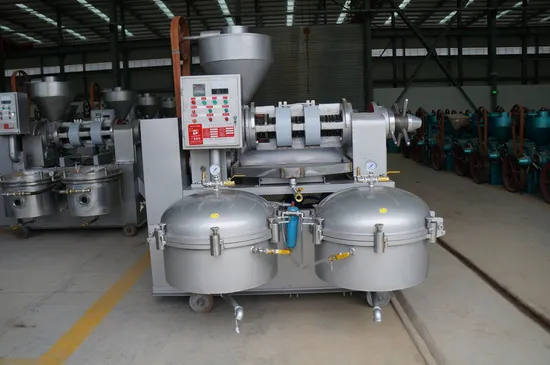

SPIRAL OIL PRESS YZLXQ10-6/8/9
Processing Capacity (t/24h) 4.5 Tons Per Day
Product Description

150Kg per Hour Guangxin Oil Expeller Sunflower Oil Press Screw Oil Mill Machine
Our spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed, and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility, and high efficiency. It is widely used in the small oil refinery and rural enterprise.

Item	YZLXQ10-6,10-8,10-9,10J-2
Revolving speed of spiral axis (r/min)	32-40
Power required(kw)	7.5-11
Electrical power of filtration machine (kW)	1.5
Power of Tem controlling (kW)	5.4
Measurement (mm)	1890*1520*1915
Weight (kg)	1125

Main Features: Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc. YZLXQ10-6/8/9 Oil Press 2 in 1 Combined Cold Pressed Avocado Coconut Oil Machine

Oil Plants	Processing Capacity (t/24h)	Oil content of Dry cakes (%)	Oil yield efficiency (%)	Electric power consumption (kw.h/t)
Rapeseed	≥4.5	≤7.8	≥81	≤40
Cotton seeds	≥4.5	≤7.3	≥76	-
Soybean	≥3.8	≤6.8	≥66	≤56
Peanut	≥4.5	≤6.8	≥92	≤39

INTERNAL STRUCTURE OF PRESSING CHAMBER


OIL MAKING PROCESS

The series automatic temperature controlled combined oil presses made by our company are suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
Guangxin Oil Expeller Sunflower Oil Press Screw Oil Mill Machine
Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)

Model	Processing capacity (t/24h)	Residue oil of the cake (%)	Spiral axes rotate speed (r/min)	Main electromotor power (k.w)	Measurement(mm)(L*W*H)	Weight (kg)
YZYX90	1.3	<=7.8	36~40	4	1180*530*1120	195
YZYX90	3	<=7.8	32~42	5.5	1250*530*1140	285
YZYX10(95)	3.5~4	<=7.8	32~40	7.5 or 11	1650*680*1320	520
YZYX10-5(6/8/9)	4.5	<=7.8	32~40	11	1760*680*1320	560
YZYX10J-2	4.5	<=6.0	32~40	11	1820*680*1320	580
YZYX120	6.5	<=7.0	28~40	11 or 15	1860*740*1310	650
YZYX120J	7	<=6.0	35~45	11 or 15	2110*720*1350	720
YZYX130-8/9	8	<=7.6	32~40	15 or 18.5	2020*850*1450	825
YZYX130GX-8/9	8~10	<=7.6	32~42	18.5	2100*820*1400	960
YZYX140	9~11	<=7.6	32~40	18.5 or 22	2010*750*1430	825
YZYX140GX	9~11	<=7.6	30~40	18.5 or 22	2100*820*1380	980
YZYX140CJ	9~11	<=7.6	32~40	18.5 or 22	2200*800*1440	880
YZYX140CJGX	9~11	<=7.6	30~40	18.5 or 22	2280*820*1380	1100
YZYX168	20	<=7.4	36~44	37 or 45	2750*1040*1830	1830

Company Profile

Packaging & Shipping

FAQ

Q: Are you a factory or trading company?
A: We are factory with 30 year's manufacturing experiences, and we also have our own trading company. Our main products including: screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts, etc.
Q: How can we verify that you are a factory?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake +1KG sand +1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. Usually only 1 time to get maximum oil. Peanuts need to be roasted to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
Q:What serivice we will provide for you?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry. Tips1. The raw material is:_______ Tips2. The capacity of the machine you need is:______ Thank you and looking forward to your inquiry, we will response immediately.
270Kg per Hour Guangxin Oil Expeller Sunflower Oil Press Screw Oil Mill Machine
Make order right now! And why?
One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. It is ture! So, don't worry about the quality. It is beter than you imagined!
