Product Description

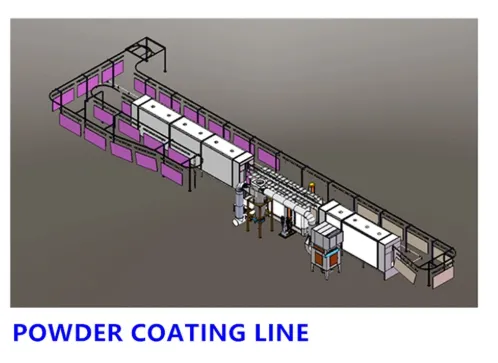

Automatic MDF Powder Coating Line Manufacturer
1.BRIEF INTRODUCTION
The MDF powder coating line is new invented instead of painting line for it is much more environmentally friendly and the technology is becoming much more advanced.
2.TECHNOLOGY PROCESS
Loading>Preheating>Powder coating>Powder curing>Cooling>Unloading
3.TECHNOLOGY INTRODUCTION
3.1PRE-HEATING OVEN

Voltage and Frequency	AC 380V 50/60HZ(CUSTOMIZED) 3 phase
Oven body	Inner:Galvanized sheet Outside:Galvanized sheet with powder coated
insulation	100mm Rock Wool
Size	according to your MDF board size and conveyor speed
Heating	Infrared lamp heating
Heating tempreture	80-120ºC(adjustable)

3.2 Powder coating system

Material	cold-rolled sheet/stainless steel/PP(Customized choice/PP is the best choice)
size	depends on the MDF board size and conveyor speed
Input Voltage and frequency	AC 380V 50/60HZ 3 Phase
Powder coating gun	WX-101 Automatic powder coating gun
reciprocator	1500/2000/2500mm stroke height
recycle	mono-cyclone system with secondary filter recycle
Control	PLC control
powder supply	powder center(with feeding and recycle two functions)

3.3powder curing oven

Material	gavalnized sheet
size	according to MDF board size and conveyor speed
Powder curing method	Infrared lamp curing
Tempreture	100-150ºC(adjustable)
Rock wool	100mm/100kgs

3.4Conveyor system

size	according to your need
type	QXG series(according to your products' size and weight)
Driving device	High effective( speed adjustable)
Accumulation chain	available according to customer's requirement
Control	automatic control

4.MDF FINISHING PRODUCTS
5.Packaging and shipping
Packaging:sea-worthy packing including carton,wooden case,wrapping film and your expected one
Shipping:by sea to your nearest seaport or your expected way
6. Our Service
Engineer are available for serve machinery install and train overseas.
7.Company information
Jiangsu xintu machinery Co.,Ltd is professional powder coating line manufacturer with over 10 years export experience and is always learn from world's advanced technology.
We have over 25000 spuare meter area and have 10 production lines and over 100 workers.
Our machines have passed the CE, SGS ISO9001 certificate that can meet customer from all over the world requirement.
If you have any need for the line, please don't hesitate to contact with us and we are willing to make design drawing to you for free.
