Industrial Automatic Mill Grinder Operate Steadily
Basic Info.
Application
Powder, Granules, Food, Chemical and Pharmaceutical, Granule or Powder Mixing, Medicine Processing
Application Area
Food, Chemical and Pharmaceutical
Certification
CE, ISO, CE/ISO, GMP
Mixing Drum Shape
V Type
Stirring Type
Gravity
Working
Convection Mixer
Type
Disc Grinder
Power Source
Electricity
Disc(Wheel) Type
Grinding Disc
Material
Steel
Working Style
High-Speed Universal
Variable Speed
Without Variable Speed
Object
Material Crushing
Disc Diameter
Customized
Feeding Size (mm)
1 - 15 mm
Output Size (Mesh)
60 - 120 Mesh
Range of Spindle Speed(r.p.m)
4000 - 4200 r.p.m
Voltage
220V/50Hz/1phase, Customized
Dimension(L*W*H)
Customized
Key Selling Points
Easy to Operate
Feature
High Efficiency Easy Operation
Marketing Type
Ordinary Product
Customized
Bearing, Motor
After Warranty Service
Video Technical Support, Online Support
After-Sales Service Provided
Free Spare Parts, Field Installation, Commissionin
Mixer Type
V-Mixer
Layout Type
Verticle
Warranty
12 Month
Transport Package
Standard Export Plywood Wooden Case
Specification
750*750*1650mm
Trademark
BIOGREEN
Origin
Jiangsu, China
HS Code
8479820090
Production Capacity
1000 PCS/Month
Product Description

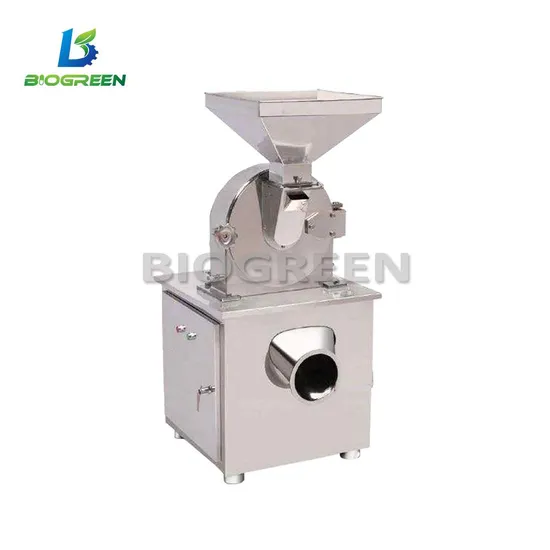

Introduce:The Grinder Machine is mainly used in chemical, pharmaceutical, food, spices, resin powder and other products.
The machine adopts a wind wheel type high speed rotary knife while the fixed knife is used for impact, shearing
and grinding. it is not only with a good pulverizing effect, but also generates a strong air flow in the machine cavity
when pulverizing. The crushing fineness can be determined by changing the screen.
Parameter:
| Item | 20B | 30B | 40B | 50B | 60B |
| Capacity (kg/h) | 20-150 | 80-200 | 100-300 | 200-400 | 300-500 |
| input size (mm) | 6 | 2-10 | 2-12 | 2-15 | 2-15 |
| output size (mm) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Weight | 200 kg | 280 kg | 400 kg | 500 kg | 620 kg |
| Spindle speed | 4500 | 3800 | 3400 | 3200 | 2900 |
| Motor power | 4 kw | 5.5 kw | 11 kw | 15 kw | 22 kw |
| Dimension(cm) | 55*60*125 | 63*70*140 | 80*90*155 | 85*85*160 | 100*90*168 |
1. Low energy consumption: adopting innovative crushing mechanism, compared with multi roll mill, the output
increases by more than 30% under the same energy consumption.
2. High fineness: equipped with high-precision self diversion classification system, the fineness of finished products
is high, the particle size distribution of products is adjustable, and the control of large particles is strict.
3. Wide range of applications.
4. Low wear: the wearing parts of the crushing part are made of composite wear-resistant new materials with long
service life.
5. System control: intelligent control, convenient operation and stable operation.
6. Environmental protection: the vibration and noise reduction design of the main engine can effectively reduce the
vibration and noise of the equipment; The system adopts negative pressure production, and there is no dust pollution
on the production site.
