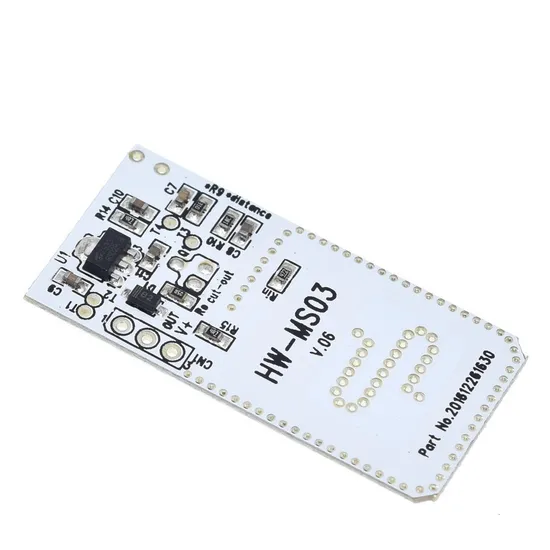

Microwave Radar Sensor Module Hw-Ms03 Smart Microwave Human Body Induction Module Switch Intelligent Sensor

Product Description

Motion Sensor Module with Microwave for LED Light Sensor (HW-MS03)
Overview
HW - MS03 is our company newly developed MS series in a single PCB microwave sensor module.The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics. This unique circuit structure design, function expansion, the strength of the strong compatibility and high cost performance advantages, is the leading the market advantage of the single panel module.
Two kinds of output modes: 1, the default output mode: on/cut, namely low level effectively. 2, customize output way: high level effective model (Vout≈Vcc).
Single PCB module,simplifies the making process, economize the make time and cost, and reduce the product of bad hidden trouble, improve the quality. so, the products have demonstrated the superior market competitiveness.
Specification

NO.	Items of parameter	Specifications of parameter	remarks
01	P/S.input range	3.7V~24VDC(by custom)	Custom-able
02	Operating voltage	Vcc=+5.0V; Vcc=+3.3V(by custom)	stabili-volt inside,Custom-able:Vcc=+5.0V or +3.3V
03	Operating current	Static Iin≤5mA;Srends Iin≤6mA	basic standard
04	Output mode	on/cut:Load≤3V Vout:H≈Vcc/L=0	Output mode:Custom-able
03	Sensor distance	Default:10m(indoor test)	adjustable
04	Delay-time for output	Default:1-2sec.	adjustable
05	Frequency range	FT=10.525GHz	design by standards
06	Outline size	single-PCB:L41*W20*D3 mm	PCB surface white oil

Feature
No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
Wide coverage without blind zone because of its field pattern emission.
The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
The signals can go through glass, door, wall and other obstacles.
Professional design of the microwave with flat antenna, low-power, ROSH and high product consistency.
Single board, small size.
Usage
The module is wildly used in security monitor, smart control system,illuminative light etc.
