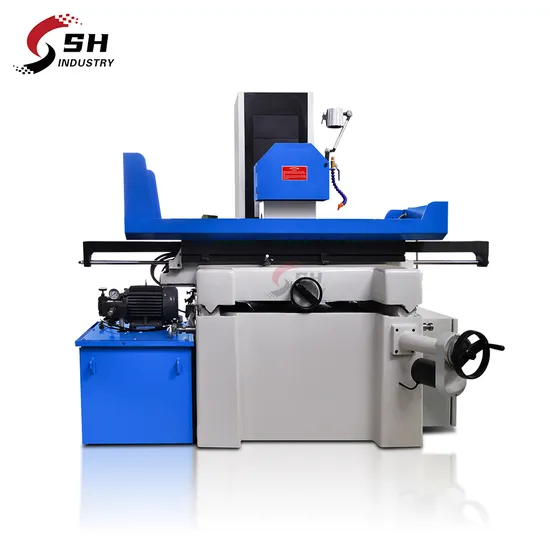

Hydraulic Surface Grinding Machine My4080 Good Price Precision Hydraulic Surface Grinding Machine
| US$11,500.00-12,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MY4080
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Hydraulic Surface Grinding Machine My4080 Good Pri
Table Size (L× W)Tmm
800*400
T-Slot
3*14
Wheel Speedt50hztr/Mi
1450
Longitudinal Speed of Working Tabletm/M
3-25
Lifting Motor
180
Transport Package
Plywoiod Case
Trademark
Shenghuan
Origin
China
HS Code
8460199000
Production Capacity
200
Packaging & Delivery
Package Size
255.00cm * 200.00cm * 210.00cm
Package Gross Weight
3200.000kg
Product Description
Hydraulic Surface Grinding Machine MY4080 Good Price Precision Hydraulic Surface Grinding MachineProduct Description
Longitudinal movement is controlled by hydraulic system\
Transverse movement is controlled by electric motor
Up and down movement is controlled by lift motor
| Model | MY4080 | ||||
| Working table | Table Size (L× W) | mm | 800*400 | ||
| Max movement of working table(L× W) | mm | 900*480 | |||
| T-Slot(number×width) | mm | 3×14 | |||
| Grinding wheel | Max distance from spindle center to table surface | mm | 600 | ||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ355×40×Φ127 | |||
| Wheel speed | 50HZ | r/min | 1450 | ||
| 60HZ | 1680 | ||||
| Feed amount | Longitudinal speed of working table | m/min | 3-25 | ||
| Cross feed(front and rear) on handwheel | Continuously(Variable Transmission) | mm/min | 600 | ||
| Intermittently(Variable Transmission) | mm/times | 0-8 | |||
| Per revolution | mm | 5.0 | |||
| Per graduation | mm | 0.02 | |||
| Vertical(up and down) feed on handwheel | Per revolution | mm | 0.8(1.0) | ||
| Per graduation | mm | 0.01 | |||
| Speed of vertical feed | mm/min | 500 | |||
| Motor power | Spindle motor | Kw*p | 4*4 | ||
| Coolant pump motor | W | 125 | |||
| Lifting motor | W | 180 | |||
| Hydraulic motor | kw | 2.2*6 | |||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | ||
| Surface roughness | μm | Ra0.4 | |||
| Weight | Net | kg | 2800 | ||
| 3200 | |||||
| Gross | |||||
| Overall dimension(L×W×H) | mm | 2550*2000*2100 | |||
Standard accessories
| Name | Quantity | Name | Quantity |
| Tool box | 1 | Balancing shaft | 1 |
| Socket wrench | 1 | Wheel dresser | 1 |
| Cross screwdriver | 1 | Diamond pen | 1 |
| Open-end wrench 12 x 14 | 1 | Wheel and wheel chuck | 1 |
| Open-end wrench 17 x 19 | 1 | drainage snake tube | 1 |
| Open-end wrench 22× 24 | 1 | flushing bag wire tube | 1 |
| Inner hexagon spanner 3 | 1 | Machine stand pad | 5 |
| Inner hexagon spanner 4 | 1 | foot-screw | 5 |
| Inner hexagon spanner 5 | 1 | Water tank | 1 |
| Inner hexagon spanner 6 | 1 | Electromagnetic chuck(400*800mm) | 1 |
| Inner hexagon spanner 8 | 1 | Balancing stand | 1 |
| Inner hexagon spanner 10 | 1 | Work lamp | 1 |
| Inner hexagon spanner 12 | 1 |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
