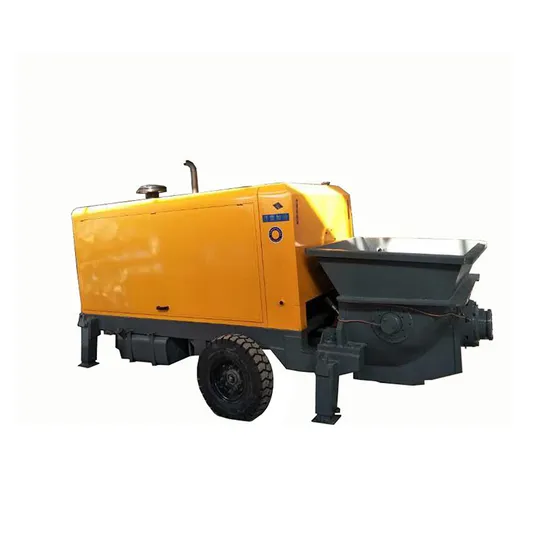

Mini Concrete Mixer Pump Mobile Diesel Concrete Pump
Basic Info.
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Construction
Structure
Cylinder Type
Productivity
12m3/H
Feeding Height
1200mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Max.Aggregate Size
20mm
Max Vertical Delivery Distance
50m
Max Horizontal Delivery Distance
80m
Transport Package
Wooden Case
Specification
3100*1400*1700mm
Trademark
HW
Origin
China
HS Code
8413400000
Production Capacity
1000sets/Month
Product Description
To customers:1. We are a factory focus in Construction Machines for more than 10 years with CE, ISO, BV, TUV. 2. All of our Concrete Pump has both electric and diesel power for your choice;
3. Specialized After-Sales Service Team for 24h aboard site serving;
4. Overseas Spare Parts, guarantee the sufficient spare parts locally.
Product Description
Products Description:
HW20-37 Concrete Pump
Rated Power: 37Kw
Aggregate size: 20mm
Output: 30m3/h
Hengwang Concrete Pump: High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.
Product Parameters
| Model | HW20-37 |
| Power | 37kw |
| Voltage | 380V |
| Vertical delivery distance | 120m |
| Horizontal delivery distance | 250m |
| Output | 30m3/h |
| Max.Aggregate size | 20mm |
| Outlet diameter | 140mm |
| Cylinder stroke | 1100mm |
| Pipe diameter | 100mm |
| Dimension | 3500*1700*1800mm |
| Weight | 1500kg |
Detailed Photos
Packaging & Shipping
Wooden case
