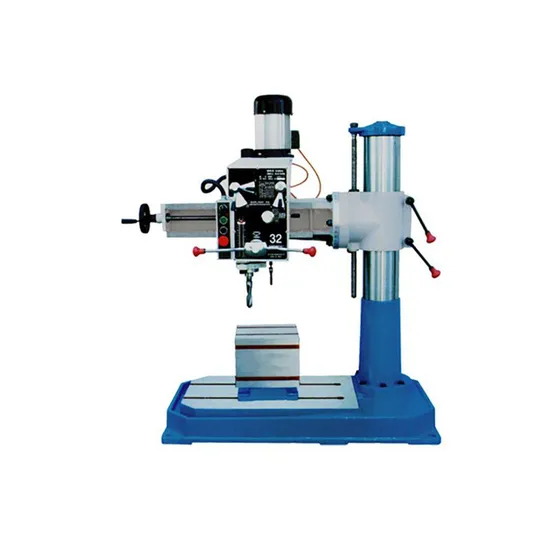

Small Radial Drilling Machine Radial Drill Press Z3032X7
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
Z3032X7
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Radial Drilling Machine Z3032X7 Feature |
| ·With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time. ·The radial arm can rotated and can tilted ±45°, it reliable and easy job can be done. ·Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality. ·The machine with small appearance and much function, the machine are widely used for drilling, counterboring, reaming, tapping etc. |
| Specifications | Z3032X7 |
| Max. drilling capacity | Φ31.5mm |
| Max. tapping capacity | (Cast Iron)20mm/(Steel)16mm |
| Distance from spindle axis to column | 300~700mm |
| Diameter of column | 150mm |
| Spindle taper | MT3 |
| Spindle stroke | 130mm |
| Step of spindle speeds | 8 |
| Range of spindle speeds | 100~1600rpm |
| Range of spindle feeds | 0.08, 0.14, 0.23mm/r |
| Rotary angle of rocker in horizontal plane | 360° |
| Distance from spindle nose to base | 275~680mm |
| Dimension of worktable | 25x25x25cm |
| Base size | 105x55x12cm |
| Main Motor | 0.75/1.1kw |
| Overall size | 124x55x120cm |
| Packing size | 122x62x128cm |
| N.W./G.W. | 385/415kg |
| Standard Accessories |
| Drill Chuck & Arbor |
| Taper sleeve |
| Drift |
| Box shape worktable |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
