Basic Info.
Agitator Model
Paddle Agitator
Tower Reactor Type
Spray Tower Reactor
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Semi-Automatic
Application Area
Chemical
Mixing Drum Shape
Circular Groove
Additional Capabilities
Milling
Operating Type
Cycle Operating
Heating Method
Oil Electric
Transport Package
Customizable
Production Capacity
5000picecs/Years
Packaging & Delivery
Package Size
150.00cm * 150.00cm * 246.00cm
Package Gross Weight
300.000kg
Product Description

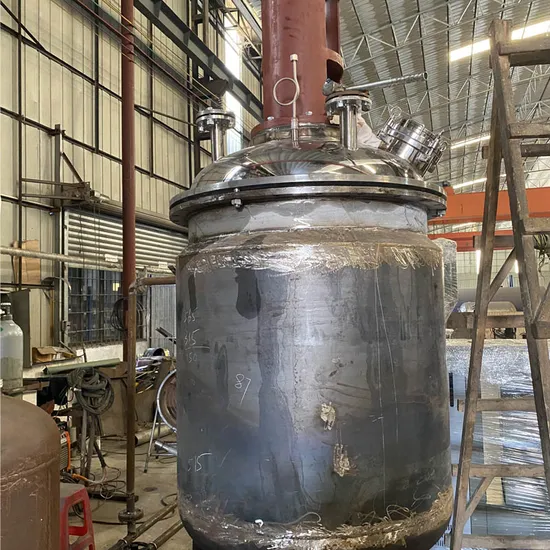

Detailed Photos
Introduction
1) Reactor is the main chemical reaction of the typical production equipmentwhich is widely used in resins adhesives paint cosmetics pharmaceutical and other chemical production.
2) To break down or combined the materials through mixing, filling and cooling to promote the reaction of polymerization.
3) The reactor consists of body, gears mixing devices heating devices cooling devices seal composition.
4) Corresponding auxiliary equipment: distillation column condenser water separator collecting cans filters ect.
Production process
In view of the principle of confidentiality for customers, the following can only briefly describe the process.
1. The liquid material is added from the liquid feed port on the top of the reactor, and the powder material (or slurry) is also added to the kettle through the manhole under the protection of a dust collector.
2.Stir in the kettle with a paddle mixer.
3. With the rotation of the paddle mixer, the liquid material and the powder material (or slurry) are gradually mixed uniformly.
4. When the materials in the kettle meet the quality requirements, open the bottom valve of the kettle. The finished material is discharged to the finished tank.
5.Fill from the finished product tank to the filling machine.
Market prospects
Disinfectant series products are necessary disinfection products for families, hospitals, and public health, and they play an important role in disinfection and sterilization especially when major epidemics occur. The market prospect is broad.
Types and main ingredients of disinfectants:
1. 84 disinfectant: the main components are deionized water, sodium hypochlorite and a small amount of surfactant, sodium hydroxide, stabilizer;
2. Hand disinfection solution: divided into 75% ethanol solution and disinfection gel, the main components are deionized water, ethanol, or gel additives;
3. Bacteriostatic foam hand sanitizer: the main ingredients are deionized water, germicidal disinfectant, surfactant, and hand protector;
purpose
1). Unsaturated resin, alkyd resin, acrylic resin, polyester resin, curing agent and complete sets of production equipment.
2). Emulsion, white latex, water-based polyurethane, water-based glue sets of production equipment.
3). 107 rubber, silicone oil, anc other sets of production equipment, hot melt adhesive.
4). Complete sets of production equipment.
5). PU glue, adhesive, grafted gum syrup glue sets of production equipment.
6). Complete sets of raw rubber production equipment.
7). Waste silicone cracking, distillion, recycling sets of production equipment.
8). Dispersion paints, coatings, stirring and mixing equipment.
Product Parameters
