Steering Worm Shaft with Screw and Nut Assembly (CIE-BS)

Product Description

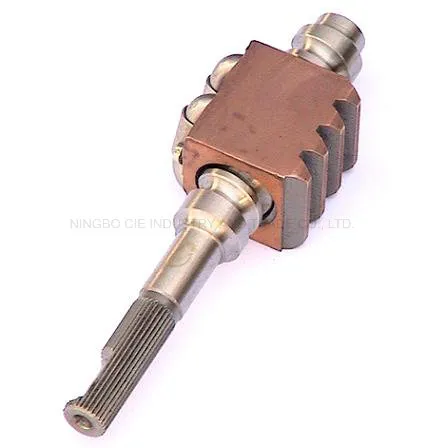

Steering worm Shaft with Screw and Nut Assembly (CIE-BS)
The sliding ball nut of worm shaft assembly has tapered teeth cut on one face that mate with teeth on the sector, as the steering wheel is rotated, the nut is moved up or down on the worm, different specification of worm shaft assembly are available for High heavy duty truck, jeep and car.
The ball screw assembly steering gears consists of a screw and a nut, each with matching helical grooves, and balls which roll between these grooves between the nut and the screw when the nut or screw is rotating. The balls are deflected by the deflector into the ball return system of the nut and they travel through the return system to the opposite end of the ball nut in a continuous path, and exit from the ball return system into the ball screw and nut thread raceways continuously to recirculate in a closed circuit.
The ball nut assembly: Ball nut determines the load and life of the ball screw assembly.
The ratio of the number of threads in the ball nut circuit to the number Of threads on the ball screw determines how much sooner the ball nut will reach Fatigue failure (wear out) than the ball screw will. Ball nuts are manufactured With two types of return systems.
We can produce it according to your drawing,even with old samples! mainly for racing teams
