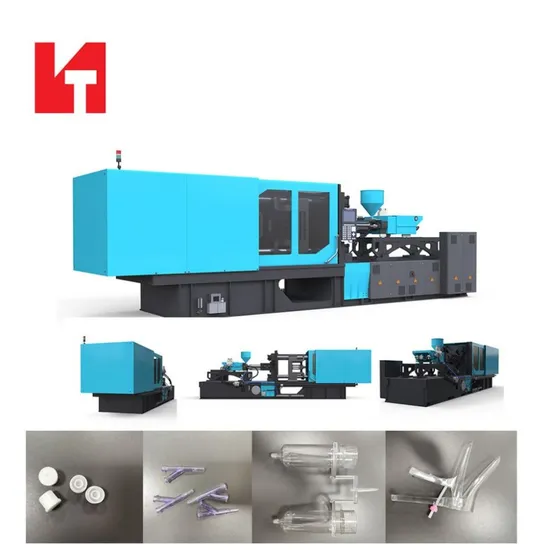

630 Ton Disposable Medical Injection Molding Machine
Basic Info.
Model NO.
NT-1063
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Product Name
Plastic Injection Molding Machine
Machine Type
Horizontal/Hydraulic/Electric
Application
Plastic Industry
Operating Langauge
English/ Customization
Auxiliary Equipment
Robot Arm/Chiller/Crusher/Auto Loader.etc
Delivery Time
45-60 Days
Shipping Method
Full 20gp/40gp/40hq Container
Transport Package
at Seller′s Option
Specification
6300KN
Trademark
LEANTALL
Origin
China
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
1100.00cm * 250.00cm * 300.00cm
Package Gross Weight
30000.000kg
Product Description
630 Ton Plastic Injection Molding MachineHigh-Performance Plastic Injection Molding Machine This state-of-the-art machine consists of four main systems: a plasticizing system, an injection system, a clamping system, and a transmission system.
At Fuzhou Leantall Technology Co., Ltd, we have revolutionized injection molding with advanced die-casting technologies. Our machines integrate mechanical, hydraulic, and electric control systems for comprehensive enhancements, delivering the perfect blend of dynamic pressure casting and unparalleled speed.
To enhance production stability and ensure energy efficiency, especially for medical products like syringes, we have integrated an infrared heating coil and a servo motor system into our standard injection molding machine.
This innovative approach guarantees precision, reliability, and cost-efficiency in your manufacturing processes.
Item | Unit | NT580 | NT630 | NT750 | NT900 | NT1180 | ||||||||||||||
| SCREW DIAMETER | mm | 75 | 80 | 85 | 90 | 90 | 95 | 100 | 105 | 90 | 95 | 105 | 110 | 95 | 100 | 105 | 105 | 115 | 125 | 135 |
| SCREW L/D RATIO | L/D | 22.7 | 21.3 | 20 | 19 | 22 | 21 | 20 | 19 | 23 | 22 | 20 | 19 | 22 | 21 | 20 | 23.8 | 21.7 | 20 | 18.5 |
| INJECTION STROKE | mm | 390 | 390 | 390 | 390 | 400 | 400 | 400 | 400 | 460 | 460 | 460 | 460 | 470 | 470 | 470 | 555 | 555 | 555 | 555 |
| INJECTION SPEED | Mm/sec | 88 | 88 | 88 | 88 | 80 | 80 | 80 | 80 | 81 | 81 | 81 | 81 | 84 | 84 | 84 | 65 | 65 | 65 | 65 |
| SHOT VOLUME(THEORETICAL) | CM3 | 1723 | 1960 | 2213 | 2481 | 2544 | 2835 | 3141 | 3463 | 2926 | 3260 | 3983 | 4371 | 3331 | 3691 | 4069 | 4805 | 5764 | 6810 | 7943 |
| INJECTION WEIGHT(PS) | g | 1568 | 1783 | 2013 | 2257 | 2315 | 2579 | 2858 | 3151 | 2662 | 2966 | 3624 | 3977 | 3031 | 3358 | 3702 | 4372 | 5245 | 6197 | 7228 |
| INJECTION PRESSURE | Mpa | 186 | 164 | 145 | 129 | 180 | 162 | 146 | 132 | 195 | 175 | 143 | 131 | 189 | 171 | 155 | 207 | 173 | 146 | 125 |
| INJECTION RATE | cm3/sec | 388 | 442 | 499 | 560 | 508 | 567 | 628 | 692 | 515 | 574 | 701 | 769 | 595 | 659 | 727 | 526 | 675 | 797 | 930 |
| SCREW SPEED | rpm | 136 | 116 | 109 | 120 | 98 | ||||||||||||||
| CLAMP FORCE | Kn | 5800 | 6300 | 7500 | 9000 | 11800 | ||||||||||||||
| OPEN STROKE | mm | 850 | 905 | 1000 | 1100 | 1180 | ||||||||||||||
| SPACE BETWEEN TIE BARS | mm×mm | 860*860 | 925*875 | 1020*970 | 1250*1085 | 1180*1100 | ||||||||||||||
| MAX.MOULD HEIGHT | mm | 830 | 900 | 960 | 1100 | 1250 | ||||||||||||||
| MIN.MOULD HEIGHT | mm | 330 | 330 | 400 | 500 | 500 | ||||||||||||||
| EJECTOR STROKE | mm | 226 | 295 | 340 | 335 | 325 | ||||||||||||||
| EJECTOR FORCE | Kn | 150 | 150 | 210 | 216 | 245 | ||||||||||||||
| EJECTOR NUMBER | N | 13 | 21 | 17 | 17 | 21 | ||||||||||||||
| MAX.PUMP PRESSURE | Mpa | 16 | 16 | 16 | 16 | 16 | ||||||||||||||
| SEVRO DRIVE POWER | Kw | 55 | 45+30 | 45+37 | 45+45 | 55+37 | ||||||||||||||
| HEATING POWER | Kw | 33.5 | 42.8 | 46 | 48.5 | 68.5 | ||||||||||||||
| MACHINE DIMENSION(L*W*H) | m×m×m | 8.6*2.3*2.6 | 10.2*2.2*2.7 | 11*2.4*3.2 | 11.3*2.65*3.4 | 12.5*2.65*3.5 | ||||||||||||||
| MACHINE WEIGHT(ESTIMATE) | T | 21 | 30 | 35 | 40 | 54 | ||||||||||||||
| ADVANTAGES | |
| 1. Clamping Unit Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite-Element Analysis; High-speed clamping is stable while low-pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose. | |
| 2. Injection UniT Double-cylinder balance injection system; Shot weight is precisely controlled by transducer; Using a hydraulic motor to carry out variable speed. | |
| 3. Hydraulic Unit Domestic high-tech divided hydraulic system; Hydraulic safety device; and Imported high-quality hydraulic components are applied. | |
| 4. Electric Unit Special controller for plastic injection molding machine; All the main components are imported from famous companies, for example, TE(France), Gefran(Italy), etc. | |
| Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested. |
