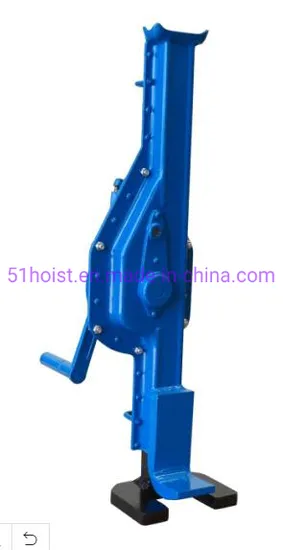

Professional Crank Steel Mechanical Rack Jack with High Quality

Product Description

Mechanical Jack Introduction:
1. Double pawl brake system-quick braking, safe and reliable.
2. Low gearing tolerance-smooth transmissions, free of jerks.
3. High efficiency and munimum turning force less than 25kgs is required to lift full load of all rated capacity.
4. Sturdy structure, light weight and quick lift performance, high quality material CRS plate, Carburized allor steel gears.

Model		QJC015	QJC030	QJC050	QJC100	QJC160	QJC200	QJC250
Capacity (t)		1.5	3	5	10	16	20	25
Proof load (kN)		18.4	36.8	61.3	122.5	196	245	306.3
Effort Required to Lift Rated Load (N)		150	280	280	560	640	640	640
Stroke (mm)		300	350	350	410	320	320	320
Min. Lifting Height (mm)	F	60	70	80	85	95	100	110
	H	600	730	730	800	800	860	970
Dimensions(mm)	A	163	197	189	250	275	275	350
	B	190	200	239	293	320	335	340
	C	273	296	335	498	514	529	538
	D	100	130	140	140	150	150	170
	E	55	60	71	86	78	78	80
	G	110	140	170	170	180	180	200
	K	113	127	127	248	250	250	250
	R	225	250	275	300	300	380	380

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
