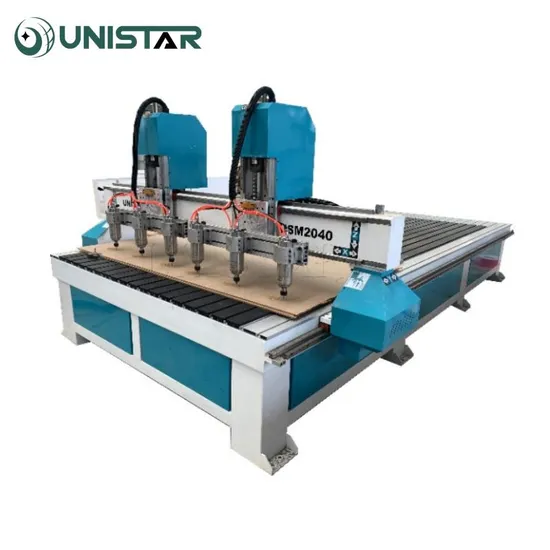

Multi Head Wood Engraving Cutting Machine

Product Description

Product Parameters

Model	2040
Working Area	2000*4000*200 mm
Table Structure	aluminum T-slot table
Rail Guide	HIWIN square rail guide
Transmission Type	X, Y	rack and pinion
	Z	ball screw
Working Accuracy	±0.05 mm
Repositioning Accuracy	±0.05 mm
Max Travelling Speed	30000 mm/min
Max Working Speed	15000 mm/min
Spindle	Type Of Cooling	water cooling
	Power	2.2 KW*6
	Speed	0-24000 r/min
Inverter	Fuling Inverter
Driver System	Leadshine hybrid servo driver and motor
Command Code	G code
Control System	Rich Auto DSP
Oil Injection System	automatic oil injection system
Working Voltage	AC380v/3ph/50HZ

Detailed Photos
SPINDLE
6 water cooling spindles

Divided into two groups, the two groups are independent of each other, can not work at the same time, even if one group has a problem, the other group can work, practical is very strong.
MOTOR AND DRIVERS
Leadshine hybrid servo motor and drivers
Use unique current control system technology to save power consumption.
RAIL GUIDE
Taiwan HIWIN square rail guide
Using ball for rolling friction, low friction, suitable for high-speed operation.
BALL SCREW
Z zaxis uses Taiwan TBI ball screw
It has high precision.
RACK AND PINION
XY zaxis use the transmission mode of helical rack and pinion.
Bevel gear is mainly able to improve the contact degree of gear mesh, so that the gear transmission is smooth and reduce noise.
TABLE
Aluminum T-slot table
Table bearing capacity is good, long service life. Simple operation, no vacuum pump required.
INVERTER
Shanghai Fuling Inverter
It has good overload, overvoltage and overcurrent protection function. Ensure the safe operation of the spindle.
OIL INJECTION SYSTEM
Automatic oil injection system

Can maintain a continuous supply of new oil to lubricate the surface.
TOOL
We provide all the necessary tools and instructions to help you install and use.
Product Description
Application
Multi-head engraving machine can carve wood, acrylic, resin and other materials. Suitable for processing solid wood picture frame, musical instrument, cabinet door, screen, relief crafts and other products.
Features 1. 6 heads work together to greatly improve work efficiency and save time.
2. The product consistency of multi-head engraving machine is high.
3. The working efficiency of one machine tops 6 machines, reduces purchasing cost and saves space.
4. When the processing amount is not large, one spindle can work and one spindle does not work, reducing energy consumption and avoiding unnecessary waste.
5. Different tools can be installed on different spindles, saving tool change time and improving work efficiency.
Samples
Company Profile
Our Company
1. UNISTAR company in the machinery manufacturing industry has more than 20 years of history, we have been committed to rich experience and the best solutions to meet the world's customers, our trade quality first, service first, customer first for the purpose, to help every customer gain benefits.
2. We have a professional R & D team to ensure product quality and the continuous launch of new products to meet market demand.
3. We have our own factory, the quality and service are guaranteed, the price is also favorable
4. Excellent management mechanism, reliable quality assurance system, advanced technology, advanced equipment and management concept, so that the company has been sustained and stable development.
Our Service
1. 24 months guarantee of the whole machine.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at an agency price when you need replacement.
5.Machine has been adjusted before delivery.
6.We have excellent engineers good at English to provide at doorservice. If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
7. Could be remote control if needed.
8. We can provide English software, user manual and detailed Videos CD
9. Door to door technical group service. 24 hours technology online support ,Skype, MSN, Yahoo,etc or by mail and phone .
10. Free training course at our plant.
Packaging & Shipping
Customer Visiting
FAQ
Q1: If the machine encounters any issues after I order it, what should I do?
A1: During the warranty period, we will send you free parts if the machine encounters any issues. We offer lifetime free after-sales service for the machine. Please don't hesitate to contact us if you experience any problems. We provide 24-hour service via phone and Skype.
Q 2: Can I visit your factory?
A2: Yes! We warmly welcome customers to visit our factory!
Q3: What are your after-sales services?
A3: 1. We provide a tutorial machine installation video and technical online guided installation, along with a machine instruction manual.
2.We offer engineer overseas training and installation if needed. This includes machine installation, software training, machine operation procedures, daily maintenance of the laser tube cutting machine, and common problems and solutions.
3. We have agent service bases in various countries such as Peru, Egypt, Europe, and Saudi Arabia. If an issue arises, you can also contact our foreign service agents.
4. We provide 24-hour online technical support through remote control systems to solve customer problems. We use various chatting tools like QQ, WeChat, WhatsApp, and Skype to ensure your issues are resolved promptly.
Q4: What payment methods does your company accept?
A4: 1. 30% T/T as an advance payment and 70% T/T balance payment before shipping the machine.
2. 100% L/C at sight.
3. 30% T/T deposit payment, 70% upon seeing the copy of the bill of lading.
Q5: What is the warranty period?
A5: The entire machine comes with a 3-year quality guarantee. If any parts break during the warranty period, we will replace them for free (excluding human-caused damage).
