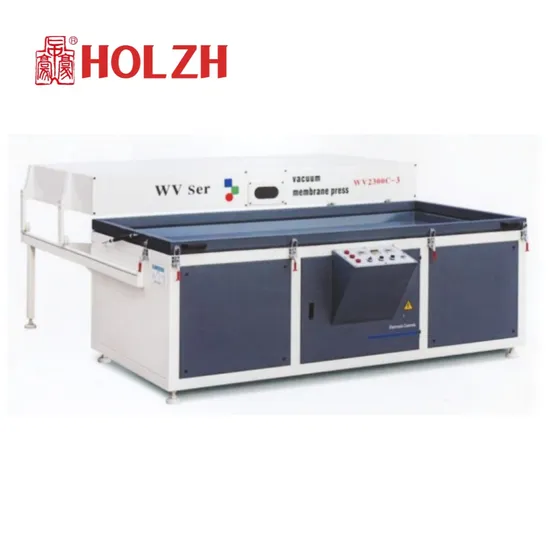

Woodworking Machinery PVC Veneer Vacuum Door Cabinet Laminating Lamination Membrane Press Machine

Woodworking Machinery PVC Veneer Vacuum Door Cabinet Laminating Lamination Membrane Press Machine

US$4,600.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WV2550C-3
Classification
Vacuum
Application
Plywood, Aluminium Plate, Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
PVC Veneer
Plastic Film Mulching Modes
Vacuum
Performance
Protect
Max Working Thickness
70mm
Total Power
25 Kw
Vacuum
-0.1MPa
Weight
600kg
Transport Package
Standard Export Packing
Specification
3100*1600*1800mm
Trademark
HOLZH
Origin
Shandong, Qingdao
HS Code
8465940000
Production Capacity
20sets/Month

Product Description


Model WV2300C-3 WV2500C-3 WV2550C-3
Worktable size 2300*1100mm 2500*1100mm 2550*1300mm
Max Workpiece size 2200*1000mm 2400×1000mm 2450*1200mm
Total power 25 Kw 26.5 Kw 26.5 Kw
Vacuum -0.1Mpa -0.1Mpa -0.1Mpa
Overall dimensions 2500*2700*1150mm 2700*2700*1150mm 2750*2900*1150mm
Packing dimensions 2850*1600*1800mm 2850*1600*1800mm 3100*1600*1800mm
Weight 500kg 600kg 650kg

Characteristics:
1. Design unique, innovative, easy to operate.
2. The high degree of automation, installation easy, simple operation, easy to learn., this machine achieved that when we need to heating then heating, when we don't need to heat then without heating. it save much energy.
3. Saving energy. This machine use near-infrared heating pipe, heating fast and temperature higher. Therefore it solves the problem of long time of pre-heating, and saves 30 minutes waiting time.
4. Direct Connect vacuum pump, low noise, small size, high technology content.
SAMPLE
