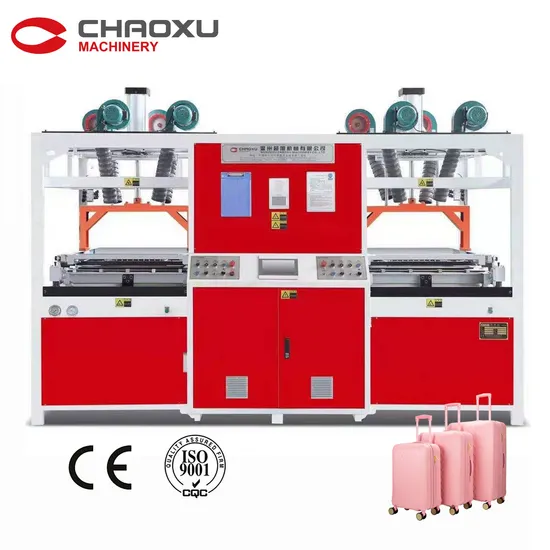

New Plastic Vacuum Forming Machine ABS PC Luggage Making Machine

Product Description

Products Description:
New Plastic Vacuum Forming Machine ABS PC Luggage Making Machine
Products Description: CHAOXU Customized Hard Suitcase Sheet Termoformadora
1)Two working modes. Automatic and Manual working modes can be chosen by customers. 2)Two Chambers. The left and right stations can work by turns to save time and provide productivity.
3)PLC screen. The operation interface is compact and easy to operate, the paraments can be adjusted and saved in real time.
4)Preheated system. Sheets can be preheated automatically to save power and time. 5)Heaters. All heaters are controlled separately and easy to be adjusted.
6)Silent technology. Machines can move and work silently.
7)Cooling system. Customers can change the cooling direction according to the situation.

Model	UINT	YX-20A	YX-24A	YX-28A	YX-32A
Thickness	MM	1-4
Input power	V	380
Vacuum capacity	M³	0.2	0.3	0.35	0.4
Vacuum pressure	MPA	-0.07 ~ -0.09
Air pressure	MPA	0.65-0.75
Air consumption	L / MIN	550	650	800	900
Weight	T	2.1	2.4	2.6	3
Total Power	KW	40	49	57	64
Forming Dimension	MM	600*420*200	690*510*200	780*600*200	880*680*230
Overall Dimension	MM	2880*1760*2410	3180*1860*2410	3480*1960*2440	3780*2085*2590

Application:
Plastic sheet such as ABS, PC or recycled material is suitable for this machine. It is used specially to process Suitcase/Luggage/Trolley case shell with fast speed and high good quality.
The YX-A series is provided with automatic separated frame operation and upper-lower double heating with PLC intelligent control system. Machine can be customized as required.
About Us:
Wenzhou Chaoxu Machinery Co.,ltd has specialized in Intelligent Luggage Machinery Industry since 1992.
We became a leading brand after two decades' development and management, having a group of senior technical team. Our main products are Plastic Sheet Extrusion Machine, Vacuum Forming Machine, Cutting Machine, Punching Machine and so on.
In addition, we have researched and achieved lots of national technical patents:
for example: Cursor positioning device in cutting component
Mold distributor device and Water film temperature machine device for Extrusion Machine
Lifting frame device and Drying oven device for Vacuum Forming Machine
Also, we processed CE, ISO9001:2015 certificates and owned the whole running system.
Meanwhile, we are cooperating with global famous luggage manufacturers such as Samsonite, Crown and having further relationship with suppliers ABB, Schneider, Siemens, Taiwan Weinview, Japan ORMON and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
Exhibition:
Packing&Shipping:
Certificate:
FAQ:
Q1:Are you a factory or a trading company? A1:We are the manufacturer and factory, specialized in luggage machinery industry since 1992.
Q2:Where is your factory? How can I get there?
A2:Our factory is located in Pingyang County, Wenzhou City, Zhejiang Province, China.

Q3:What's your main market?
A3:Our machine is sold well in 30 provinces and cities and enjoy high reputation in China. At the same time,
it has been widely exported to more than 20 countries, such as Turkey, Morocco, India, Bangladesh, Algeria, Egypt, Tunisia, South Africa, Vietnam, Cambodia, Thailand, Germany, Indonesia, Lebanon, Pakistan, Brazil, Russia, etc.
Q4:How is your factory doing in quality control?
A4:Quality is the most important principle. There are at least twice test before shipment, the first is by our factory, the second is together with customer. Thus our customers will know well about how to use the machine before it arrives at their factory. And also we will offer whole-life service. What's more, all machinery has been passed ISO and CE testing. Strictly testing the machine and arranging delivery after 100% confirmation of no problem are what we always do.
Q5:How about after sales service?
A5:During the special period , we will offer all support online via video 24h per day. Before shipment, we will test machine from A to Z, and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together. And if customers need the engineer to offer support in their factory, the cost and visa should be paid and prepared by customers.
