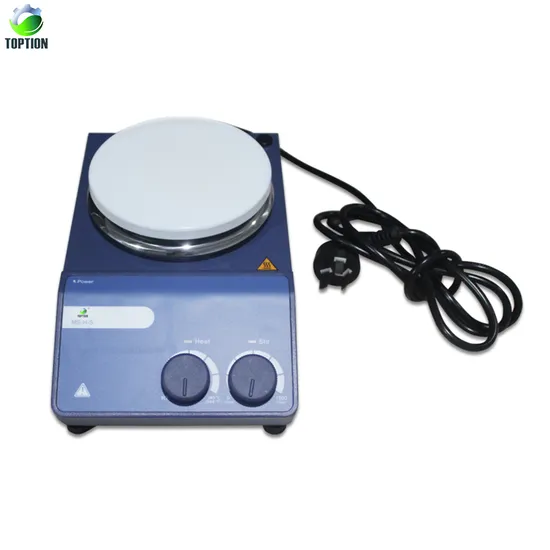

Magnetic Stirrer Magnetic Mixer with Stir Bar 1500 Rpm Max Stirring Capacity 20L
| US$215.00-245.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MS-H-S hot plate magnetic stirrer
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Condition
New
Mixing Drum Shape
Disc
Speed Range
100-1500rpm
Stirring Type
Diving
Working
High Speed Mixer
Customized
Customized
Structure
Desktop
Material
Stainless Steel
Type
Hot Plate
Work Plate Dimension
135mm(5 Inch)
Work Plate Material
Stainless Steel Cover with Ceramic
Motor Type
Brushless DC Motor
Motor Rating Input
18W
Motor Rating Output
10W
Power
550W
Heating Output
500W
Max. Stirring Quantity[H2O]
20L
Stirring Positions
1
Max. Magnetic Bar[Length]
80mm
Heating Temperature Range
Room Temp.-340degree
Over Temperature Protection
420degree
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Warranty
One-Year
Transport Package
Hard Carton Packing
Specification
20L
Trademark
TOPTION
Origin
China
HS Code
8479820090
Production Capacity
30000PCS/Year
Product Description
Product Description20L Magnetic Stirrer With Heating 340 Degree Centigrade
Product Parameters
| Specifications | MS-H-PRO+ | MS-H-PROT | MS-H-S |
| Work plate dimensions | Φ135mm (5 inch) | Φ135mm (5 inch) | Φ135mm (5 inch) |
| Work plate material | Stainless steel cover with ceramic | ||
| Motor type | Brushless DC motor | ||
| Motor rating input | 18W | ||
| Motor rating output | 10W | ||
| Power | 550W | 550W | 530W |
| Heating output | 500W | 500W | 500W |
| Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 | 1 | 1 |
| Max. Stirring quantity [H2O] | 20L | 20L | 20L |
| Max. Magnetic bar [length] | 80mm | 80mm | 80mm |
| Speed range | 100-1500 rpm resolution ±1 rpm | 100-1500 rpm resolution ±1 rpm | 100-1500 rpm resolution ±1 rpm |
| Speed display | LCD | LCD | Scale |
| Temperature display | LCD | LCD | Scale |
| Heating temp. range | Room temp. -340ºC, increment 1ºC | Room temp. -340ºC, increment 1ºC | Room temp. -340ºC |
| Temp. Control accuracy | ±1ºC(<100ºC), ±1% (>100ºC). | ±1ºC(<100ºC), ±1% (>100ºC). | \ |
| Over temp. protection | 360ºC | 360ºC | 350ºC |
| Temp. Display accuracy | ±0.1ºC | ±0.1ºC | ±0.5ºC |
| External temp. sensor | PT1000 (accuracy ±0.2) | PT1000 (accuracy ±0.2) | \ |
| "Hot" warning | 50ºC | 50ºC | \ |
| Timer function | \ | 1min to 99h 59min | \ |
| Data connector | RS232 | RS232 | \ |
| Protection class | IP42 | IP42 | IP42 |
| Dimension [W*D*H] | 160*280*85mm | 160*280*85mm | 160*280*85mm |
| Weight | 2.8kg | 2.8kg | 2.8kg |
| Permissible ambient temp. And humidity | 5-40ºC 80% | 5-40ºC 80% | 5-40ºC 80% |
• Maintenance free brushless DC motor
• Max. temperature to 340°C
• Stirring speed up to 1500 rpm
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Safety circuits provide overheating protection
• A wide variety of accessories are available
