Wspvcc-1500V CE IP67 Waterproof 30A 1500V PV DC Solar Panel Cable Connector for Solar Photovoltaic System

Product Description

Product Description SOLAR CONNECTOR Feature: Simple on-site processing. Acomodates PV cable with different insulation diameters. Mating safety provided bykeyed housings. Multiple plugging and unplugging cycles . High current carrying capacity. TUV and UL approved.
SOLAR CONNECTOR Specification:

Item	SOLAR CONNECTOR
Model Number	WSPVCC
1500V/1000V DCTest Voltage	1500V/1000V DC
Overvoltage Type/Pollution Degree	6000V(50Hz, 1min)
Contact Resistance Of Plug Connector	CAT III /2
Contact Resistance Of Plug Connector	ImΩ
Contact Material	Copper, Tin-plated
Insulation Material	PPO
Degree Of Protection	IP2X/IP67
Flame Class	UL94-VO
Safety Class	II
Suitable Cable	OD 4.5-8.5(2.5-10.0mm2)
Insertion Force/Withdrawal Force	≤ 50N/ ≥ 50N
Connecting System	Crimp connection
Temperature Range	-40ºC ~ +125ºC

Our Service Quick reply Quick delivery Photography serviceAverage response time 2.75 hours 1000 PCS<7 Day Free photos and videos of your products
Production visualization Barrier-free communication After-sales service Synchronize the progress of your product English major level 8 to improve Two-year warranty and timely communication production for you communication efficiency Certifications
Company Profile
Yueqing Xianglang Electric Co., Ltd., with over a decade of experience in the solar accessories industry, has been dedicated tothe manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, the company's annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes,the company boasts CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, Yueqing Xianglang Electric Co., Ltd. has earned a reputation for high-quality products,competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.
Packaging & Shipping
SOLAR CONNECTOR Packing Details:500 PAIRS PER CARTON: 500 pairs per carton/54*26*22cm/11.6kg SOLAR CONNECTOR Delivery Time:1-10 days after confirming order,detail delivery date should be decided according to production season and order quantity.
SOLAR CONNECTOR Shipping:1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods FAQ 1:How many solar connectors can you produce every day?
We can produce 300,000 solar connectors every day
2: Why can you produce so many solar connectors
Because we have 31 injection molding machines, 15 of which can continuously mold solar connector shells, and 15 solar automatic assembly machines, which can automatically assemble 24 hours a day
3.What does your price of $0.14 include?

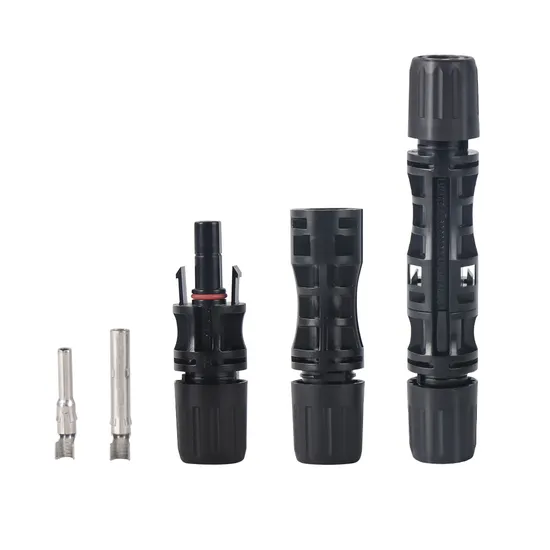

A pair of solar connectors, Male connector + female connector + copper terminal
4.Are your prices so cheap?
Because all the accessories are produced by ourselves and we have our own molds, the price is cheap. Our shell is made of V0 flame retardant material, and the terminal is galvanized copper terminal. The quality can be guaranteed. Our product warranty is 20 years, which can be guaranteed to be used for at least 20 years.
5:Are your solar connectors waterproof?
Our connectors are IP67 waterproof
6:I am in a hurry to get the goods now. When can you ship them?
300,000 PCS can be shipped within 1 day at the earliest, 500,000 PCS can be shipped within 7 days
7:Do your products have certificates?
CE ISO9001 certification
8:What payment methods do you accept?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
