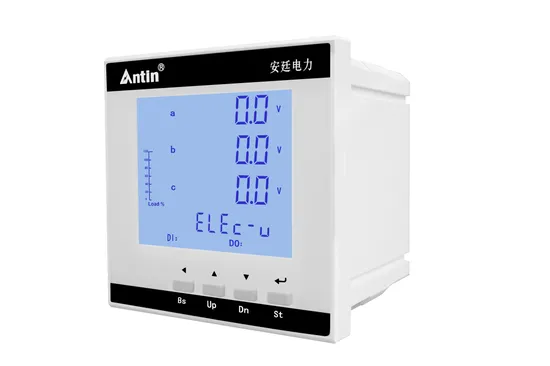

Advanced AT180Y Three Phase Power Meter with LCD Readout
| US$25.00-40.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
AT180Y
Display
Digital
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment
Embeded Panel
Type
Energy Meter
Certification
ISO, CE
Customized
Customized
Voltage
AC100/220/230/400V
IP Class
IP51
Communication
Modbus
Operation Temperature
-25ºC~55ºC
Operation Humidity
≤90%Rh
Altitude
≤2000m
Average Trouble-Free Operation Time
≥50000h
Power Consumption
≤5W
Frequency
45Hz~65Hz
Accuracy Class
Active Power: Class1; Reactive Power: Class0.5
Insulation Class
2
Transport Package
Paper Carton + Pallets
Trademark
Antin
Origin
Hangzhou
HS Code
903033900
Production Capacity
50000 Per Month
Packaging & Delivery
Package Size
12.00cm * 12.00cm * 11.00cm
Package Gross Weight
0.400kg
Product Description
Product DescriptionAT180Y digital three-phase multi-function power analyzer adopts professional metering chip with industrial-grade microprocessor to measure electrical parameters such as voltage, current, power, power factor, frequency, forward and reverse bi-directional electric energy in the power grid, with high cost performance. The instrument adopts embedded installation which makes it easy for installation and simple for wiring. Segment code LCD display, easy to read. It is widely used in power grid, automation control system, SCADA, DCS system, etc., to help users save cost and space.
Main features:
Three-phase power measurement Modular design, flexible configuration of each function Adjustable voltage and current ratio Parameter settings are permanently stored in power failure Support RS-485 communication, MODBUS-RTU protocol Adopt AC-DC dual-use power supply, high and low voltage isolation Segment code LCD display Simple and convenient installation and wiring Product Parameters
| Measurement and metering | |
| Voltage | Phase voltage, line voltage |
| Current | Three-phase current |
| Active power | Split-phase and total active power |
| Reactive power | Split-phase and total reactive power |
| Apparent power | Split-phase and total apparent power |
| Power Factor | Phase-to-phase and total power factor |
| Frequency | 45-60Hz |
| Power measurement | |
| active power | forward/reverse active power |
| Reactive power | Positive/reverse reactive power |
| Communication function | |
| Communication protocol | MODBUS-RTU |
| Communication mode | RS485 |
| Parameters | Value | ||
| Applicable grid | 3 phase 4 wires, 3 phase 3 wires | ||
| Working power | Voltage range | AC/DC85~265V;DC18V~72V(Optional) | |
| Power consumption | <5VA | ||
| Accuracy Class | Active Power Class 1, others Class 0.5 | ||
| Input | Voltage | Rated | AC 100V,220V,400V |
| Power consumption | <0.4VA/Phase | ||
| Impedance | ≥200kΩ | ||
| Current | Rated | AC 5A(0.02A-6A) | |
| Power consumption | <0.2VA/Phase | ||
| Impedance | ≥0.1Ω | ||
| Frequency | 45Hz~65Hz | ||
| Switching input | Dry contact input, photoelectric isolation | ||
| Output | Switching output | Relay output; can set any alarming power, default remote control | |
| Analog output | 0~20mA/0~5V(Can be set) | ||
| Digital communication interface | RS485/Modbus-RTU | ||
| Pulse output | 1~2 channels electrical energy pulse,Four-quadrant power metering | ||
| Environment | Temperature | Operation temperature: -20ºC~55ºC, Storage: -25ºC~70ºC | |
| Humidity | ≤90%RH, non-condensing, no corrosive air | ||
| Altitude | ≤2500m | ||
| EMC electromagnetic compatibility test | Electrostatic discharge immunity test | GB/T 17626.2-2006:test level 4, test voltage 8kV | |
| RF electromagnetic field immunity test | GB/T 17626.3-2006:test level 3, test field strength of 10V / m | ||
| Fast transient pulse group test | GB/T 17626.4-2008:test level 2, current voltage 1kV, other 500V | ||
| Surge (shock) immunity test | GB/T 17626.5-2008:test level 4, test voltage 4kV | ||
| RF field induction conducted harassment immunity test | GB/T 17626.6-2008:test level 3, test field strength of 10V / m | ||
| Voltage transients, short interruptions and voltage changes in the immunity test | GB/T 17626.11-2008:current and voltage test error qualified | ||
| Oscillation wave immunity test | GB/T 17626.12-1998:Class B ITE test, qualified | ||
