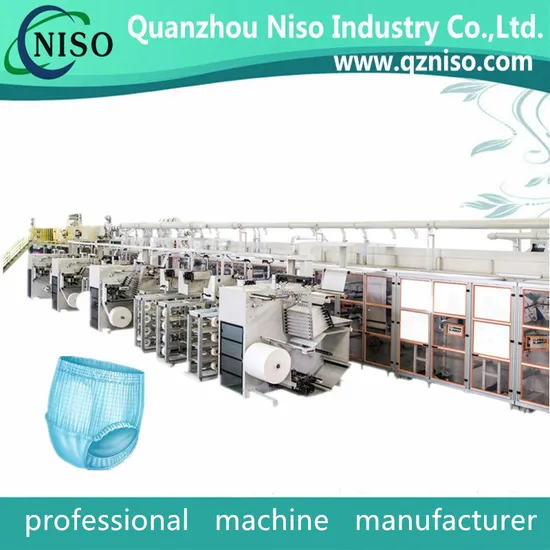

High Speed Automatic Full-Servo Disposable Baby Diaper Machine

Product Description

High Speed Automatic Full-Servo Disposable Baby Diaper Machine
what is training pants?
1.Soft, stretchable side panels that pull on like real underwear
2.Easy, tear-away sides for quick removal
3.Perfume and latex free
4.Simple back design that clearly identifies front from back
Two kinds of easy pull up diaper machine for you to choose

Part 1 Parameter
Model	semi-servo machine		full-servo machine
automaticity	full automatic		full automatic
Name	Semi servo baby diaper machine		full servo baby diaper machine
Product size	S, M, L, XL		S, M, L, XL
Design speed	350pcs/min		450pcs/min
Production speed	250pcs/min		350pcs/min
Power	380 KW
Power source	380V, 50HZ, 3 phase 7 wire
Efficiency	>=88%
Rejection rate	<= 2%
Machine weight	60 Ton
Machine size	30m * 3m * 5m
Operating size	30m * 7m * 5m
Air pressure	0.6-0.8MPA
Machine color	Customlized
Machine direction	Customlized
Part 2 Electric part
PLC	Mitsubishi / Simense		Mitsubishi / Simense
Touch screen	Mitsubishi / Simense		Mitsubishi / Simense
Unwinding type	Initiative		Initiative
Materials shaft stand	Pneumatic shaft stand		Pneumatic shaft stand
Tension control system	√		√
Unwinding motor	Invertor motor		Invertor motor
Web guider	Digital & Auto		Digital & Auto
Driving system	Servo motor independently control		Servo motor independently control
Detective	Auto		Auto
Materials splicing	Auto		Auto
Position cutting (Back sheet / frontal tape)	√		√
Safety door	Back & Front		Back & Front
Flat belts	Switzerland		Switzerland
Timing belts	USA		USA
Bearing	Japan		Japan

Why Choose This Machine?
1.the whole machine is drived by servo motors, which can control the drive system more accurately.

2.the unwinding is control by constant tension, which means the engineers can change the raw material without stop the machine.

3.equipped with web guider, Video detection system to detect the inferior-quality product.

4.PLC control, easier to control the machine. Because the machine show information by some image.

5.Position cut of the backsheet and logo

6. the craft of the waistband is welding and cutting integratly to shape the product more accurately.

7.the spandex of elastic waistbands are cut into piece and control by tense independently to make the product more comfortable.
The Difference between Easy Ups Training Underwear &traditional baby diaper? Training underwear is specially designed to make potty training easier for you and your toddler. Learning to dress is an important step for toddlers in the potty training process.
That's why Pampers Easy Ups Training Underwear has a 360º stretchy waistband, which provides an underwear-like fit that's easy for a toddler to pull up and down.
Easy Ups look and feel more like real underwear, so your toddler will feel like a big girl!
Easy Ups are also designed with the Pampers Leak Protection you expect, so they can be worn both day and night for a more consistent training process.
Pampers Easy Ups feature Extra Absorb Channels to help distribute the fluid evenly-locking it away from skin-and Dual LeakGuard Barriers to help stop leaks where they happen most.
Our Plant

Frequently Asked Question
Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every aspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our
factory for training, we will offer accommodation.
Q: How long can I get the machine?
we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.

Q: Can I buy raw material from your company?
A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.
