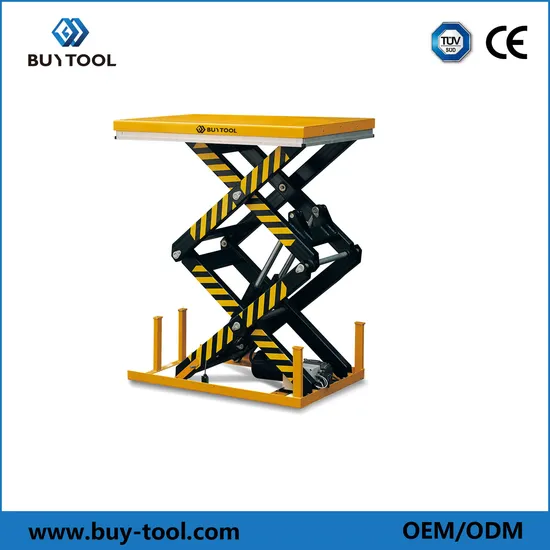

Electric Hydraulic Lifting Table Double-Scissor Table Lifter Cargo Lifting

Product Description

Double-Scissor Table Lifter Electric Hydraulic Lifting Table
Product Description
Heavy duty design
Meet EN1570 norm and ANSI/ASME safety standard.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation.
Product Parameters

Model		HD1000	HD2000	HD4000
Capacity	Kg	1000	2000	4000
Lowered Height	mm	305	360	400
Raised Height	mm	1780	1780	2050
Platform Size	mm	92	850x1300	1700x1200
Base Frame Size	mm	640x1240	785x1220	1600x900
Lift Time	(sec)	35-45	35-45	55-65
Power Pack		380V/50HZ,AC2.2kw
Net Weight	kg	210	295	520

Detailed Photos
Display Of Real Photography
Packaging & Shipping
FAQ
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
