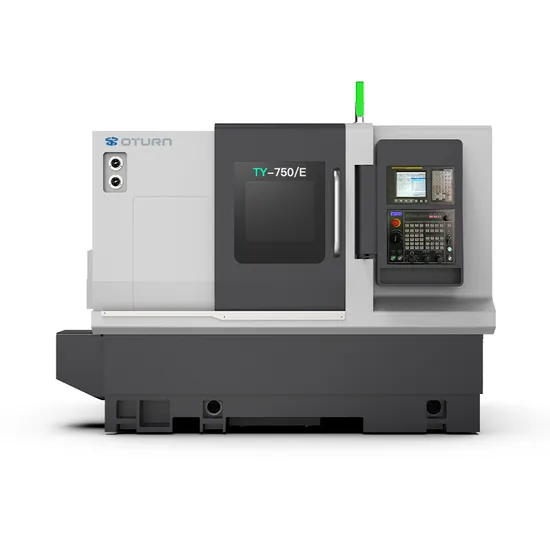

Oturncnc Heavy Duty CNC Turret Lathe Slant Metal Lathe for Turning Precision Auto Parts Ety750

Product Description

Product Description
The TY750LA series CNC lathe adopts a box-shaped structure bed, which is made of high-strength HT300 cast iron. It has a dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating properties. The overall box structure of the base bed greatly enhances the overall rigidity of the machine tool. And stability, and has the function of absorbing vibration, reducing tool loss and improving workpiece quality. It has a high performance-price ratio, the layout of the whole machine is compact and reasonable, and its high speed, high precision, high rigidity and rich configurations provide users with high efficiency and high reliability guarantee in use.
1. Main features of this machine:
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The maximum speed can reach 4500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
3. The hydraulic tailstock is a high-rigidity integral tailstock that can eliminate vibrations, has excellent stability, is convenient, fast and reliable.
4. The standard configuration of high-performance servo turret provides users with convenient, practical and reliable processing components.
5. The feed system is directly driven by a servo motor, with good rigidity, precision and dynamic response characteristics. The machine tool is equipped with THK roller linear guide, and the maximum rapid movement speed can reach: 24m/min.
6. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
7. It adopts a Taiwan rotary chuck cylinder and is equipped with an automatic chip removal device. The chip removal method can be selected from the side or the rear direction to remove chips and separate waste residue to ensure that the inside of the water tank is clean and free of fine residue structural design. It can greatly reduce the operator's labor intensity and achieve safe and efficient production. All the above functional components can be controlled programmatically, and various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

	Name	Unit	TY750LA/E
Travel	Max. bed rotation diameter	mm	Ф600
	Max. processing diameter	mm	Ф500
	Max. machining rotation radius on the tool holder	mm	Ф260
	Max. processing length	mm	750
Spindle Hydraulic cylinder Chuck	Spindle nose	/	A2-6
	Spindle through hole diameter	mm	Ф65
	Max. rod hole diameter	mm	Ф52
	Spindle maximum speed	rpm	4500
	Spindle motor power	kw	11/15 kw
	Hydraulic cylinder/chuck	/	8"
X/Z axis feed parameter	X/Z motor power	kw	1.8
	X/Z axis travel	mm	275/780
	X/Z axis rapid movement	mm/min	24
	Positioning accuracy	mm	±0.005
	Repeat positioning accuracy	mm	±0.003
	Slide rail type	/	35
Servo Tutter parameters	Tool station	pcs	12T
	Outside diameter tool holder specifications	mm	25x25
	Inner diameter tool holder specifications	mm	Ф40
	Adjacent tool change time	sec	0.15
Tailstock parameters	Hydraulic tailstock	/
	Sleeve diameter	mm	Ф80
	Sleeve stroke	mm	100
	sleeve taper	/	MT#5
Outline dimensions	Covered area approx.	m	2.9x1.9x1.8
Other	Mechanical weight approx.	kg	4800
	Cutting fluid tank volume	L	155L
	cutting water pump	kw	0.75kw
	Hydraulic unit box volume	L	40L
	Hydraulic oil pump motor power	kw	1.5kw
	Lubricating oil tank volume	L	2L
	Automatic lubrication pump motor power	W	50W
	Cooling water pump power	W	750W
