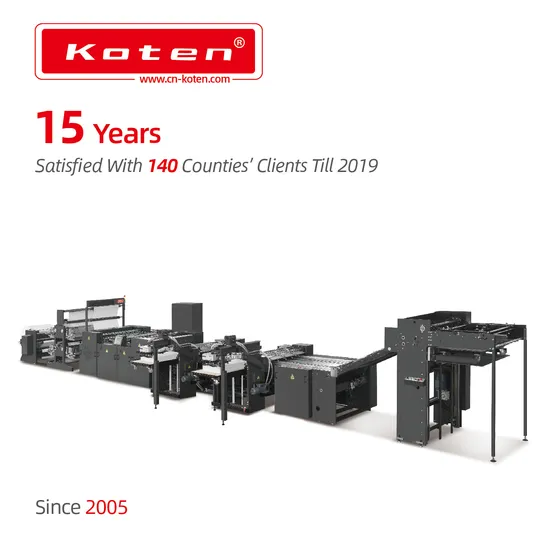

Multi Function Exercise Book Making Machine with Two Cover Feeder and High Pile Stacker

Product Description

Finished Samples.
Introducation.
Flexo wire side-stitching line is developd by our company. It based on our Flexo Ruling Machine series and absorbed foreign machine's advanced technology. After reel-release the web, double side Flexo printing, cross cut to single sheet, counting and stratifying, auto covering, wire stitching, folding, back planning, cross cutting, then comes out the finished product of notebook. This line is ideal machine for producing wire side stitching
Notebook.
The main key parts of this machine are imported from foreign specialist manufacturers; Theelectrical apparatus control system used the most advanced Fieldbus Control System and Non-axle servo control system. It ensured each part of the machine working harmoniously.
Process.
Principle
The paper reel on the reel stand is unwound first and the unwound paper then goes through the transfer cylinder to the printing unit to get printed before sheeted to a preset sheet length in the lateral sheeting unit. Next, the piled sheets are further transported to the counting and piling unit to get piled in stacks of a defined number of sheets. When the stack gets to the feeding and collecting unit, a covering sheet is laid down on its top there and now the stack gets wire-stitched in the stitching unit prior to getting half-folded at the stitching line in the folding unit. After folded, the book spine has to be dressed and, afterwards, it has to be front trimmed, slit and side trimmed before the final product of exercise-books are eventually delivered to the delivery, completing the whole process.
Main Specification.

Model	LK-1020A
Web width	Max.1020mm. Min. 580mm.
Web diameter	Max. 1300mm.
Web core diameter	76mm(3inch)
Cutting precision	0.02mm
Printing and slitting length	Max. 670mm
(Length ranged in every 5mm, optional)	Min. 300mm.
Cutting length	250-450mm(book size 125-225mm vertical,125-330mm cross size )
Counting page	5-50sheets/layer
Printing speed	Max. 350m/min.
Working frequency	Max.55times/min.
Max.sheets stitching	About 100pcs for 45gsm paper.
Wire requirement	15KG/Reel
Counting piling	40layers/min
Reel paper requirement	40-120gsm
Cover paper requirement	70-300gsm
Stitching heads	8pcs Hohner-Germany
Main motor	22KW
General power	32KW
Air source	0.8MPa
Weight: approx.	17000kgs

Koten Machines Container Loading.
140 Countries Clients Who Has Koten Brand Machines Till 2019.
Exhibitions and Customers'Meeting.
Factory Production. FAQ.
1. Why choose us to cooperate? Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time. 2. Guarantee. There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line. 3. Delivery Time. Within 7-30 days after get the deposit. Depends on different machines. 4. What is your package? What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together. 5. Do you have Installation and Training service if we bought the machines from your company? The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free. 6. Have you sold any machines to our country? We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback. 7. What is your payment terms? T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment. L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight. By Cash, by western union, credit cards are acceptable. Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight. 8. What your company can offer? Exercise Books Making Solutions.
