Safe and Reliable Qingdao Cheaper Rubber Mixing Mill Machine

Product Description

Safe And Reliable Qingdao Cheaper Rubber Mixing Mill Machine
Company Introduction:
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based"since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Product Information:
1.The roller adopts safe cold hard cast-iron, formed by the grinding smooth surface. Inside the hollow cylinder for use , the steam and cooling water is used to regulate the temperature of the rolls according to the requirement .
2.Two rolls with different relative rotation speed, make the rubber roller into the slot between the two rubber rolle by mechanical process.
3.While happened accidents, pull the rod, the main parts won't be damaged for its protection immediately braking ,. So it is safe and reliable.
Working Principle:
Its main working parts is two different parts of the rotating drill hollow cylinder or rollers. The device in the side of the operator, can be called the front roll and operated by manual or electricity in the level movement in order to adjust and adapt to the requirements from roller.
Technique Parameters :

model	XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Working diameter rolle(mm)	φ160	φ250	φ300	φ360	φ400	φ450	φ560/510
The length of roller work(mm)	320	620	750	900	1000	1200	1530
Front roller speed(m/min)	8.95	15.3	15.1	16.25	18.65	24.32	27.72
Before and after the roller speed ratio(m/min)	1:1.35	1:1.1	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Roll away the largest(mm)	4.5	8	8	10	10	15	20
A feeding quantity(kg)	1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power	5.5	18.5	22	30	37	55	90
Outline demension (mm)	1226	3120	3780	4250	4350	5000	5845
	830	1322	1850	1850	1850	1850	2284
	1295	1500	1740	1770	1785	1800	1978
Weight(kg)	1280	4000	5200	6500	7600	9800	23000

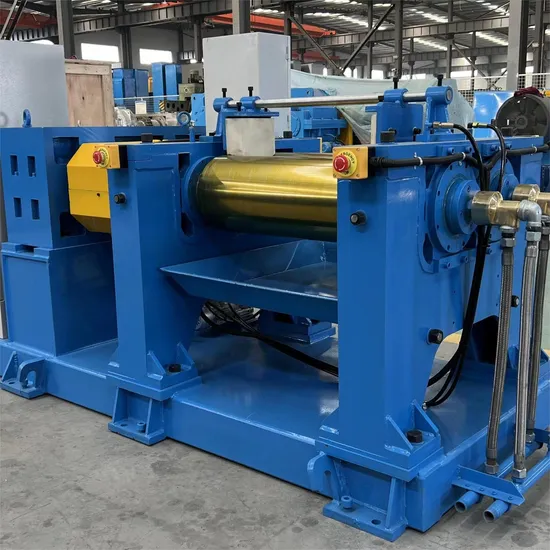

Pictures For Reference:
FAQ:
Q:How many days do you need to produce this machine?
A: Usually 15-25 days,it depends on the machine and power mode,
customized type will be 30-45 days,for production line equipments will take 2-3 moths.
Q: How to control your quality ?
A:First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.For the smaller machine we will install the machine at our workshop to make sure it can work well.For the bigger machine, we will install the machine for our customers until it can work well.
Q: What's your machine quality guarantee?
A:Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you install the machine overseas?How long will it take?
A: Yes,we can arrange the engineer to come to help install,need to pay accordingly,like round trip tickets,salary,living and eating,etc.Time depending on the equipment your order,usually 30-60 days.
