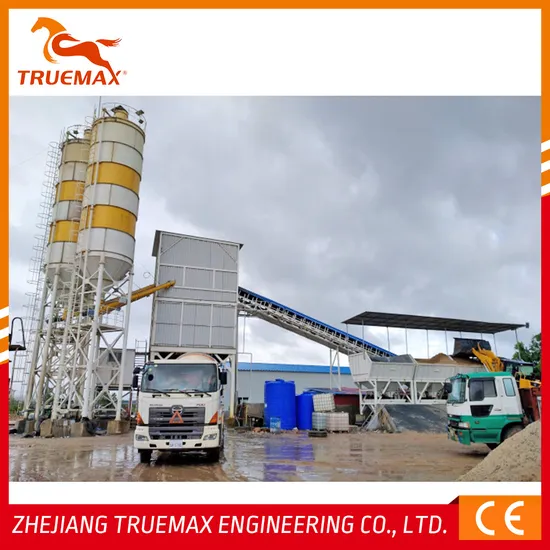

Cbp180s Stationary Concrete Batching Plant

Product Description

Production Information:
Concrete Batching Plant
1.Excellent agitation performance
We adopt SICOMA twin-shaft concrete mixer, whose agitation performance is strong. So we have high productivity and our concrete is well-proportioned. The maximum aggregate size can be up to 80mm, and our products all have good mixing performance towards hard, plastic and various proportions of concrete. Our agitator liner and mixing blade have been handled specially, and the unique shaft and sealing devices greatly improve the life of the mixer.
2.High reliability
The main electrical components of the control system are imported, which greatly reduce the failure rate of the equipment.
3.Unique non-stick shaft technology
Through the unique design and rational distribution of parts, such as mixing arm, mixing blade, material feeding place, material feeding sequence and so on, we solve the problem of concrete sticking shaft and reduce the labor intensity.
4.Accurate calculation
We adopt the control mode of microcomputer with instrument, so the calculation speed is fast and the response time is short. With the function of point feeding and automatic deduction, the measuring precision can reach and exceed the national measurement standard in the dynamic state.
5.Perfect industrial design
Our products have beautiful shapes, reasonable layout, pleasant colors, easy operation and convenient maintenance. The guarantee of our excellent products are rigorous logical thinking, profound design concept, thorough ergonomics handling and exquisite detail design.

Product Advantages:
1.High stability
Heavy-duty steel frame design. Overall stability, spacious space, easy maintenance.
2.High performance of mixing
Mixer adopts twin-shaft concrete mixer, meets the mixing of the various concrete.
3.High quality of belt
high stability belt,rebber coating drum, nylon core belt enable long service life. Forward roller is effectively anti-deviating the head of belt conveyor is equipped with a gauge cover, effectively preventing the material spilled
4.High class configuration, stable quality, accurate weighing
The main electrical components of mixer, weighing sensor and control system adopt world well-known brands, with stable quality and accurate weighing.
5.High degree of automation, easy operation
The whole machine is controlled by computer, either automatically or manually,simple,easy to operate. it can also store and print the reported date, providing great convenience for production scheduling management.
Parameters:

Technical Specification		CBP180S
Theoretic Productivity(m³/h)		180
Aggregate silo capacity (m³)		4*20m3
Max. magnitude of aggregate scale(kg)		7500kg±2%
Mixer	Type	MAO4500/3000
	Motor power(kw)	2*55
	Discharging volume(L)	3000
	Max. aggregate size	60/80
	Macadam/Pebble (mm)
Cement Weighing		1800kg±1%
Water Weighing		800kg±1%
Additive Weighing		2*90kg±1%
Discharging Height(mm)		4200
Total power(Without silo and screw conveyor)(kw)		170

Our Service:
Faster speed of response of service Modern transportation network of railway and aviation,make sure that all spare parts got delivered in time.

Apart from supplying only the best quality products, we also have available our technical and management solutions.
Our service teams always ready to provide expertise to you. Truemax is ready to provide you with a full range of services.

Best service effect to win your satisfaction and trust We continue to work for guests providing customized system solutions and provide best support and services.Because of the formidable technical team, we have provided high quality tour service to all guests.
Company Profile:
Project Case:
Certificate:
FAQ:
Q: Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
Address: No. 118 Haifeng Road, Jianshan New Zone, Haining City, Zhejiang Province China
