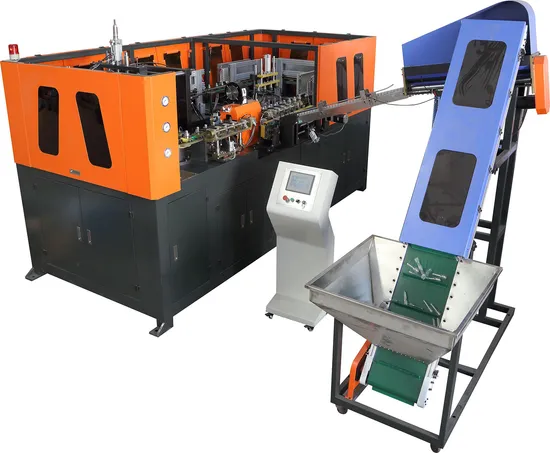

Servo Motor Control Linear Automatic Blowing Machine

Product Description

Servo Motor Control Linear Automatic Blowing Machine
Max Volume: 0.75L
Cavity: 4
Output: 5000-6000pcs/h
Easily operate and maintain
Plastic bottle blowing machine
BM-A4 automatic stretch blow molding machine with 4 cavities is specially designed to produce PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result; Shaped bottle has slight shrinkage during hot filling.
In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90° C depending on the type of PET material with different crystallization rate.
The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, BM-A4 plays a big role in hot filling package market.

Item		BM-A4
Bottle type specification	Cavity	4
	Theory output	5000-6000
	Max.volume	0.75L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	65mm
	Bottle maximum height	280mm
Power specifications	Light tube quantity	24pcs
	Maximum heating power	24KW
	All electric machine installation	27KW
	Actual consumption	8.1KW
Air pressure specification	Work pressure	7-9kg
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg
	Higher -pressure gas consumption	1500Ltr/min
Forzen water specification	Work pressure	5-6 kg
	Temperature range	10°C
	Consumption	5000kcal/hr
	Forzen water flow	50L/min
Machine specification	Size of the machine	3.4x1.6x1.9
	Weight of the machine	2ton
