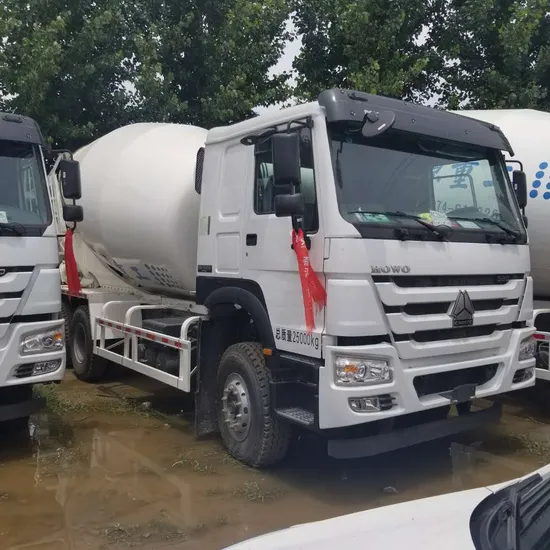

10m3 HOWO 120HP 6X4 Cement Concrete Drum Mixer Truck
| US$15,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Q355
Transmission Type
Manual
Emission Standard
Euro 4
Displacement
9
Payload
14t
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
300-400hp
Condition
Used
Specification
9400x2500x3850mm
Trademark
HOWO
Origin
China
HS Code
8701200000
Production Capacity
100000pieces/Year
Product Description
Product Description| Overall parameter | |
| Overall dimension | 9400x2500x3850mm |
| Kerb weight | 14500kg |
| Mixing Drum parameter | |
| Mixing drum material | High quality wear-resistance steel |
| Model:Q355 | |
| Drum body thickness: 5mm, End cover thickness:6mm | |
| Agitating capacity | 10M3 |
| Charging rate | ≥3 m3/min |
| Top feed hopper dimension | ≥650 mm |
| Discharging rate | ≥2 m3/min |
| Residual rate | ≤0.5% |
| Water supply | Baric water supply system |
| Water tank capacity | 450L |
| Radiator | 18L |
| Reduction gear | TOP P68 Reducer, Italy Brand |
| Hydraulic pump | ARK PV089, Italy Brand |
| Hydraulic motor | ARK MF089, Italy brand |
| Accessory | Tool box |
| Chassis parameter | |
| Chassis Brand | SINO Truck |
| Chassis model | ZZ1257N3847D1 |
| Axle base | 3825+1350 |
| Driving type | Left hand drive(LHD) |
| Engine model | D10.38-40 |
| Rated power (HP) | 380HP |
| Emission standard | Euro IV |
| Fuel type | Diesel |
| Transmission(Gear box) | HW19710 |
| Front axle | HF9 Drum type |
| Rear axle | HC16 Driving axle |
| Tyre | 12.00R20(10+1) |
| Cab type | HW 76 (with air-conditioner) |
