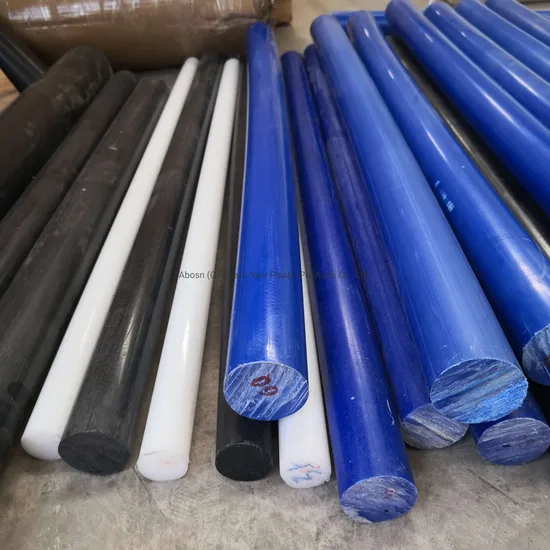

Plastic Custom Made Engineering UHMW-PE Bar Polyethylene Rod

Product Description

Plastic Custom Made Engineering UHMW-PE Bar Polyethylene Rod

Products Description
Our advantages:
Material: UHMWPE/HDPE/PP/Nylon
Produce Procedure: CNC, Injection etc.
Shape: Any, according to the drawing
Size: Φ20,Φ30,Φ50,Φ80,Φ100,Φ150 and other size
Color: Black, White, Yellow, Green, Blue etc.
Fast shipment, short production time, superior quality
Here, we could meet all your requirements for customized plastic rods
UHMWPE |HDPE rods roller stick bar product description :

Product name	UHMWPE rod|HDPE RODS|PP Rods
Plastic material	Polyethylene , polypropylene
color	White,black,yellow, green or OEM colors
Diameter	UHMWPE rods : 20/40/60/80/100/120/140/160/175/205mm stock ready for shipment other size customized Polypropylene/HDPE rods : 10/15/20/25/30/35/40/45...300mm ready for shipment
Certification	ISO9001,SGS,Test Report,RoSH
Shape	rods,roller, tube, gear, rack,pulley, guide rail, Plastics fittings sealing ....
Packing	Plastic bags,Cartons,Wodden case,Pallet,Container,ect.
Other	24 hours instant and comfortable customer service. Shipping status notification during delivery. Regular notification of new styles & hot selling styles.

UHMWPE |HDPE rods roller stick bar bulk production :
Applications 1.Chain and belt guides
2.Sliding and power transmission components
3.Chain sprockets and gear wheels
4.Sliding components and bearings
5.Track and guide rollers
Technical Data Sheet

PROPERTIES	Test Method	Unit	Value
I.Physical Properties
Density	ISO 1183	g/cm3	0.95~0.96
Water absorption 24hrs	ISO 62	%	0.01
II.Thermal Properties
Heat deflection temperature - HDT/A	ISO 75-2	ºC	55
Min. service temperature		ºC	-30
Max. service temperature-Long Term		ºC	90
Thermal conductivity at 23 ºC	DIN 11359	W/(K*m)	0.42
Coefficient of linear thermal expansion	ISO 11359	10-4*K-1	1.5
Flammability Rating(6mm thickness)	UL 94	-	HB
III.Mechanical Properties at 23ºC
Tensile strength at yield	ISO 527-2	MPa	27
Tensile strength at break	ISO 527-2	Mpa	35
Elongation at break	ISO 527-2	%	700
Modulus of elasticity after tensile test	ISO 527-2	MPa	1,000
Modulus of elasticity after flexural test	ISO 178	MPa	1,000
Hardness - Shore D	DIN 53505		64
Charpy impact strength	ISO 179	kJ/m2	N. B.
Friction coefficient	DIN 53375		0.3
IV.Electrical Properties at 23ºC
Dielectric constant at 1 MHz	IEC 60250	106Hz	2.3
Dielectric loss factor at 1 MHz	IEC 60250	106Hz	3.1
Volume resistively	IEC 60093	Ohm (Ω) * cm	>1016
Surface resisively	IEC 60093	Ohm (Ω)	>1015
Dielectric strength	IEC 60243-1	kV/mm	17
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m

Typical Properties
· Exceptional abrasion & impact resistance.
· High Sliding & non-stick characteristic
· High chemical & weathering resistance
· Non water absorption
· Lowest coefficient of friction
· Excellent electrical properties
· Light weight
· Ease of fabrication
· Temperature range: -260°C ~ +80°C

Our factory
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are
not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000usd, 100="">=1000USD, 30% T/T in advance, balance before shippment.
