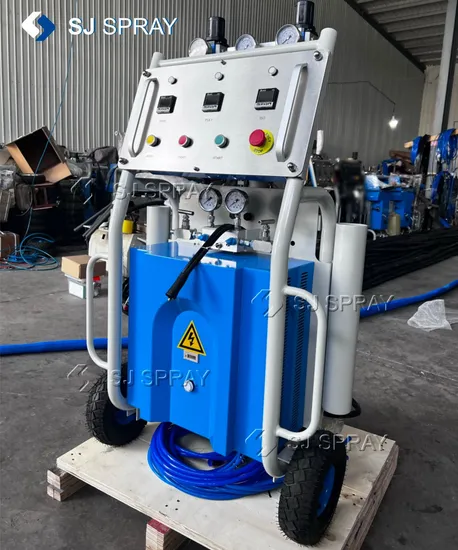

Good Service and Low Price PU Spraying Machine (FD-311A)
| US$2,800.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FD-311A
Plastic Type
Thermosetting
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE
Standar Legth of Hose
15m(49.2 Feet)
Model
Fd-311A
Machine Size
800mm*700mm*1150mm
Color
Customized
Heater Power
3000W*2
N. W
200kg
Size of Air Motor
5inch
Max Work Pressure
13.8mpa(138bar)
Output
8kg/Min
Max Length of Hose
45m(295feet)
Transport Package
Wooden Case
Specification
CE SGS
Trademark
Saijun
Origin
China
Production Capacity
50set/Month
Product Description
Polyurethane Spray Foam MachineOur polyurethane spray foam machine is used for Rigid Polyurethane and the Ratio of ISO and POLY (1: 1)
The machine is mainly applied to construction area, such as:
1). External wall insulation
2). Roof insulation and waterproof
3). Freeze house heater preservation
4). Other heater insulation
Technical parameter:
Electrical requirements single-phase: 220V 50Hz 30A
Compressed air requirements: 1MPa(10 bar, 145psi)
Output: 8-10kg/min
Shipping parameter:
N. W.: 200kg
G. W.: 220kg
Body Volume: 800*600*950mm
Packing Volume: 900*700*1150mm
Standard configuration:
Proportion Fixed Mainframe: 1 set
Self-cleaning spray/injecting gun: 1 set
Heating and preserved pipe: 49.2 feet (15m)
Connecting pipe for spray gun: 4.9 feet (1.5m)
Transfer pump: 2 sets
