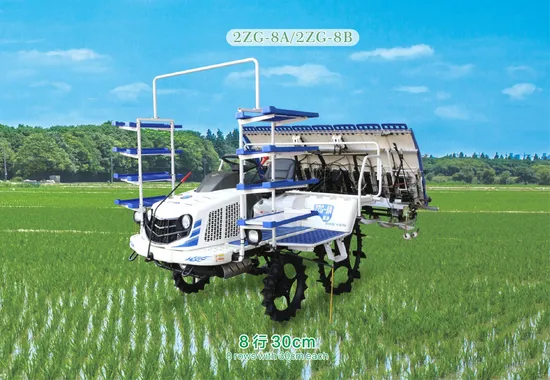

Efficient Transplanting Machine 830 High-Speed Rice Transplanter 2zg-8A/2zg-8b (Diesel)

Product Description

Main Parameters

Model Name			2ZG-8A / 2ZG-8B (Diesel)
Drive Mode			High-speed Riding-type (4wd)
Overall Dimensions	Total Length (mm)		3500
	Overall Width (mm)		2690
	Overall Height (mm)		2300
Weight Of Machine (kg)			880
Engine	Engine Model		SEEYES XY377-A
	Structural Type		In-line 3-cylinder Water-cooled 4-stroke
	Total Displacement Volume (ml)		1132
	Power / Speed (kw /rpm)		18 / 3000
	Applicable Fuel		Diesel
	Switch-on mode		Start Motor
Traveling Part	Steering Mode		Hydraulic Power Steering
	Gearshift Method		Hydraulic Continuously Variable Transmission [HCVT] + Mechanical Transmission Two-gear Shift
Transplanting Part	Row Number		8
	Row Spacing (cm)		30
	Hill Space (cm)		11, 13, 15, 18, 21, 25
	Number Of Hills (seedlings / 3.3m2)		100, 90, 80, 60, 50, 45
	Transplanting Depth (cm)		1~5 [Total 6]
	Transverse Adjustment	Transverse Feeding [mm (times)]	10.8 (26 times) / 14 (20 times) / 15.5 (18 times) or 15.5 (18 times) / 17.5 (16 times) / 20 (14 times)
	Vertical Adjustment	Vertical Taking Quantity (mm)	8~19
Seedling Conditions	Seedling Species		Block Blanket Seedling / Pot Blanket Seedling
	Leaf Age And Seedling Height (leaves, cm)		2.0~4.0, 8~25
Operation Efficiency (hectare / h)			0.0267~0.04 (6~9)

Main Characteristics
In addition to these features, the 2ZG-8A/2ZG-8B (Diesel) boasts numerous characteristics that make it an ideal choice: 1. Versatile seedling adaptation
This transplanter accommodates both blanket and pot seedlings, catering to diverse agronomic requisites.
2. Excellent farmland adaptability
Engineered to excel in varied terrains, from the sunken farmland of Northeast China to the stony farmland of Jilin and beyond, as well as the undulating farmland of South China.
3. Emulating manual transplanting
When the transplanting claw is used for transplanting, the seedling pushing mechanism mirrors manual transplanting techniques. Vertical forcing of the seedlings into the soil, rather than the traditional throwing into the soil, ensures that the seedlings are upright. The depth of transplanting is consistent, rapidly thriving seedlings.
4. Electronically controlled automatic balance system
Traditionally when transplanting rice seedlings, the machine will tilt or shake. Now the automatic balance system rectifies any vehicle tilting or shaking during the transplanting process, ensuring precise and accurate deployment of rice seedlings.
5. Farmland surface hardness sensibility
The central floating plate can perform seven-gear fine adjustment on the farmland surface hardness sensing mechanism, thereby meeting the requirements of transplanting rice seedlings in various soils.
6. Hydraulic power steering system
A high-pressure hydraulic system enables seamless steering, even in the most challenging farmland terrain.
7. Front axle transmission differential lock
Bolstered turning and maneuvering capabilities in sunken farmland enhances overall reliability.
8. Synchronous safety overload clutch
If one transplanting mechanism encounters an obstruction, the other groups halt simultaneously, resuming once the obstacle is removed. This effectively protects the transplanting part and prevents incomplete transplanting.
9. Intuitive throttle linkage
A manual and foot throttle linkage ensures convenience and aligns with operator preferences for driving.
10. Robust frame construction
Engineered for durability, it not only accommodates additional seedling trays but also safeguards the entire machine under extreme towing conditions.
11. Effortless transplanter hood operation
The front hood can be effortlessly opened and closed for seamless engine system observation, inspection, adjustment, and maintenance.
12. High-capacity fuel supply
With a 40-liter tank, the transplanter significantly reduces refueling frequency, enhancing operational efficiency. A single tank fill lasts for 10-hour uninterrupted work.
Company Information
Established in 2015, SELEHE is a subsidiary of China Xinyue Group, specializing in modern agricultural machinery. With a vision to "Craft High-Qualified Agricultural Machines and Build Top Brand," SELEHE has earned numerous accolades and holds over 104 patents for its innovative products. The company's independent manufacturing capacity for spare parts exceeds 85%, and its SEEYES brand has become a national leader in high-speed transplanters and compact tractors, contributing significantly to China's agricultural development.
Our Products
WHEELED TRACTOR
TA254-A6/TA254-A9 TA304-A9
TD404-A9/TB404-H1 TC504-A8
RICE TRANSPLANTER
2ZG-4QR 2ZG-6QR/2ZG-6A/2ZG-6B
2ZG-6AC 2ZG-8AJ/2ZG-8BJ
2ZG-8QRX/2ZG-8AX/2ZG-8BX 2ZG-8A/2ZG-8B
2FCF-6 2FCF-8
Certificate
FAQ
Q:Are you a manufacturer or trader ?
A: We specialize in manufacturing, equipped with an in-house R&D department and sales force, offering comprehensive services.
Q: How dose a rice transplanter work?
A: For instance, our rice transplanter can mirror manual transplanting techniques. It can make your farming much easier.
Q: Which rice transplanter do I need?
A: We offer a range of rice transplanters, inclusive of 4-tray rice transplanter, 6-tray transplanter and 8-tray transplanter.
Q: What is your minimum order quantity?
A: The minimum order quantity is 1 set.
Q: How can I pay for your products?
A:We accept T/T and SWIFT.
Q: What steps do we take to guarantee quality?
A: We conduct thorough inspections on all products prior to shipping to ensure they meet our quality standards.
Q: What after-sales services can I get?
A: We will provide you with technical trainning.
Q: Where can I get more information about your products?
A: Please send message to our sales managers asking for further details.
