1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant

Product Description

What is RO Water Treatment System?
The reverse osmosis water treatment system can separate, extract, purify and concentrate the reverse osmosis method that is
greater than the osmotic pressure according to the different osmotic pressures of various materials. When the RO membrane is
located on one side of the selective membrane, by applying pressure to the solution, RO membranes remove many types of macromolecules and ions from solution. Solutes such as iron, viruses, bacteria and solids are retained on the pressurized side of
the membrane, while pure solvents are allowed to pass through the other side of the membrane.
Advantages of RO water treatment system:
Reverse osmosis equipment belongs to physical desalting method, which has many advantages.
1) Non-phase-change physical method was used to desalinate and purify the saline water under temperature.
2) Desalting rate of single membrane element is 99.3% and can remove colloid, organics, bacteria, virus and all kinds of heavy metals in water at the same time.
3) With water pressure as the driving force, energy consumption is the lowest among many treatment methods.
4) No need for large amount of chemical treatment, no elimination of chemical waste liquid, no environmental pollution, and the recovery rate is over 70%.
5) High automation program, automatic stop in case of ailure, with automatic protection function.
6) The system is simple, easy to operate, and the water quality is stable.
7) Equipment covers small area, compact structure, reliable operation and high water quality.

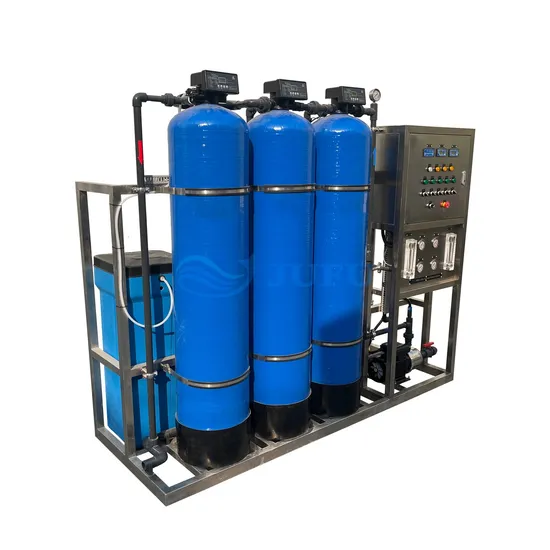

1000L/h Reverse Osmosis System
Model	JFRO-1000L
Host Size	1000x600x1600mm (can be customized)
Power	2.2KW
Power Supply	220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized
Operating Pressure	0.8-1.2MPa
Recovery Rate	50%
Designed Water Inlet	2000L/h
Outlet Flow	1000L/h
Desalination Rate	≥99.5%
RO Frame	SUS304
Membrane Size	4040
Membrane Elements	DOW /Hydranautics/Troy/ Vontron (Optional)
Number of Membranes	4
Raw Water Pump	CNP/NYP/(Optional)
High Pressure Pump	CNP/NYP/(Optional)
Tank Material	SS/FRP(Optional)
Control Valve	Manual/Automatic
Control Valve Brand	FLECK/RUNXIN
Membrane Housing	SS/FRP
Pipe Material	U-PVC/ Stainless steel (Optional)

Source water tank → source water booster pump → Quartz sand filter → activated carbon filter → water softener → precision filter → primary RO reverse osmosis pure water system → secondary RO reverse osmosis pure water system → water gas mixer →Ozone sterilizer→Stainless steel pure water tank→Automatic filling line
Jufu Water Tech is a Hi-tech enterprise which specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Jufu has strong power on know-how solution providing. The water business including water and wastewater treatment equipment supply, industrial process water, recycling and reuse solutions.
The main category of the products not limited to:
Ultrafiltration equipment, Nano-filtration equipment, Reverse osmosis equipment, EDI electric desalination equipment, Direct piped drinking water equipment, Medical purified water equipment, Water softening equipment, MBR integrated wastewater treatment equipment, Waste permeates treatment equipment.
Jufu Water Tech has supplied our water purification and water treatment equipment products and service to more than 30 provincial and cities in China domestic market based on our reliable quality, reasonable price and perfect after-sales service network. With the aim of "Water Treatment Equipment Expert Worldwide!", Jufu has successfully promoted its product into the global Water purification and water treatment field. Right now products from Jufu has successfully access to Southeast Asia, Middle East, South American and Africa market.
In the future, Jufu will continue to move forward with relentless efforts, and actively advocate "Safe, Clean and Pure" to achieve business vision of being a Top-class Water purification and water treatment products manufacturer, and an excellent Water engineering service provider!
Q: What's the type of your company? Manufacturer or Trading agent?
A: We're the Hi-tech manufacturer in Water treatment industrialfor almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation andConsulting on water treatment and water purification equipment and technologies. Q: What kind of information need to be provided for product selection? A: What 's the raw source of your water? If possible, please provide Water Analysis Report. B: What's your request on the output capacity of the equipment? C: What's the application for the project? D: What's the piping standard applied in your local market? E: Do you need on-site installation guidance? Q:How can I choose the products which can be perfectly match my case? A: Tailor-made solutions will be provided by Jufu's professional engineer based on your requirements. All the pain-points
of the project will be highlighted and solved for overall optimization. Q: What's your payment terms? A: Deposit in advance and balance before delivery. Q: What's the leadtime?A: It depends. 3-5 weeks for general products. Q:What's your warranty? A: Jufu offers 1 year warranty for the products. The product itself can work for 5 years with proper use and maintenance.
