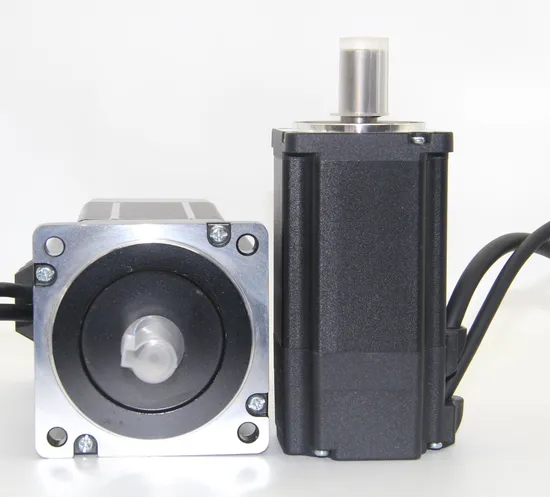

Electrical High Power Permanent Magnet 24V 48V 3000rpm 100W BLDC Servo Brushless Gear DC Motor with Gearbox / Brake / Encoder / Controller for Universal

Product Description

60BL DC Brushless Motor Introducing the Electrical High Power Permanent Magnet 24V 48V 3000RPM 100W BLDC Servo Brushless Gear DC Motor with Gearbox / Brake / Encoder / Controller for Universal applications. This motor operates at a constant speed and is excited by a brushless DC motor. Ideal for use in industrial, household appliances, cars, and power tools. Experience the reliability and efficiency of this electric motor.Product Description

Projects	Specifications
Winding Type	Star
Hall Effect Angle	120° electrical angle
Shaft Axial Play	0.025mm
Ambient Temperature	-20~ + 50°C
Ambient Humidity	<80%
Max. Radial Force	115N@20mm from the flange
Max. Axial Force	45N
Insulation Class	Class B
Dielectric Strength	one minute@500VAC
Insulation Resistance	100MΩMin.@500VDC

Product Parameters

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
60BL80-230	24	0.32	3000	5.6	100	0.96	0.057	77	0.85
60BL80-215	24	0.32	1500	2.8	50	0.96	0.114	77	0.85
60BL100-230	24	0.64	3000	11.1	200	1.92	0.057	98	1.25
60BL100-215	24	0.64	1500	5.6	100	1.92	0.114	98	1.25
60BL120-430	48	0.96	3000	8.3	300	2.88	0.115	119	1.7
60BL120-415	48	0.96	1500	4.2	150	2.88	0.228	119	1.7
60BL140-430	48	1.28	3000	11.1	400	3.84	0.115	140	2.1
60BL140-415	48	1.28	1500	5.6	200	3.84	0.228	140	2.1

Note:Brake, reducer, encoder, handwheel and other devices can be installed.
Please feel free to contact us for more details.Detailed Photos
