125kHz & 13.56MHz Dual Frequency RFID Module with Keyboard Emulation
| US$35.00-65.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TSK-Dual Frequency RFID Module-HS10
Interface
USB, Serial Port, RS232/RS485/Wg26/34
Reading Distance
>8cm
Application
Hospital, Library, Company, Bank, Store
Name
125kHz & 13.56MHz RFID Module
Frequency
125kHz, 13.56MHz
Support Chips
Em4200/Tk4100/T5577/Em4305, NFC, UL etc
Power Supply
5V or 3.3V
Protection Level
IP65
Protocol
ISO14443A/B, ISO15693 & ISO18092
Software
Supply Sdk&Demo for Free
Antenna
External, Variety of Optional Specifications
Sample
Free
Connection
Metal Pin Connection
Reading Range
0-8cm
Read/Write
Read Uid Only
Supporting Card
Em4200/Tk4100
ODM/OEM
Accept
Transport Package
DHL/Fed-Ex/UPS
Specification
39 *19 * 9mm
Trademark
TESIKE
Origin
China
HS Code
8471900090
Production Capacity
1000piece/Week
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.300kg
Product Description
125Khz & 13.56Mhz Dual Frequency RFID Module with Keyboard EmulationFree Sample Test before you place an order to us !

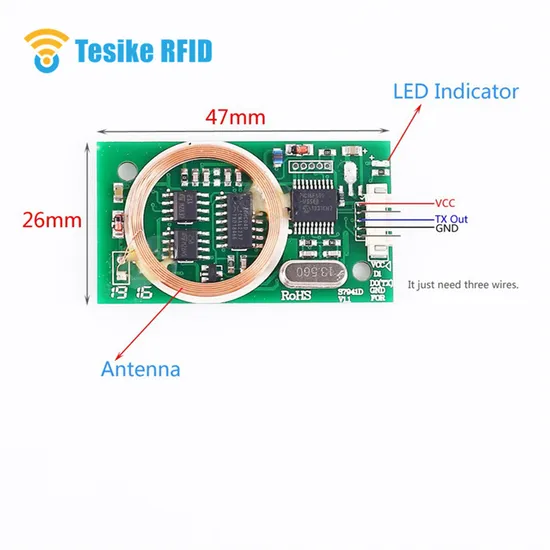

TSK217 series module is a contactless smart card reading module developed that support 125Khz and 13.56Mhz card. It adopts highly
integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of
integration, strong anti-interference ability, small size and more stable performance.
Parameter:
| Model No. | TSK217 | TSK227 |
| Frequency | 13.56MHz&125Khz | |
| Supporting Card | EM4100/EM4200/TK4100 Mifare®S50/S70/Ultralight, Mifare®Pro, Mifare®desfire | EM4100/EM4200/TK4100 Mifare®S50/S70/Ultralight, Mifare®Pro, Mifare®desfire ect H-ID® iClass, Felica, ICODE SLI |
| Interface | TTL, wg26/34, USB | |
| Power Supply | 3.3~5V | |
| Current | < 70mA | |
| Read Distance | 0-5cm(Depending on label size and antenna technology) | |
| Operating Temperature | -10ºC-50ºC | |
| Storage Temperature | -20ºC~80ºC | |
| Antenna | Built-in | |
| Dimension | 45*25mm | |
Packing information:
| Packing (TTL) | ||
| Quantity | Dimension(cm) | Weight(kg) |
| 100pcs | 22*17*7cm | 0.6kg |
| 1000pcs | 55*40*33cm | 6kg |
Model Description:
| Module NO. | Interface |
| TSK217-T | TTL |
| TSK217-W | Wiegand26/34 |
| TSK217-H | USB-H-ID |
Application:
Table PC
Lift control
POS terminal
Access control
Attendance application
Recreational Machine
Barrier gate/rapid-open gate
Advertising tablet PC
Medical Electronic Equipment
Identification card scanner
Smart game equipment
Hand-held intelligent terminal
POS consumption endpoint
