Plastic Mixing Equipment for PVC Material Mixer Machine

Product Description

Plastic Mixing Equipment for PVC Material
Characteristics:

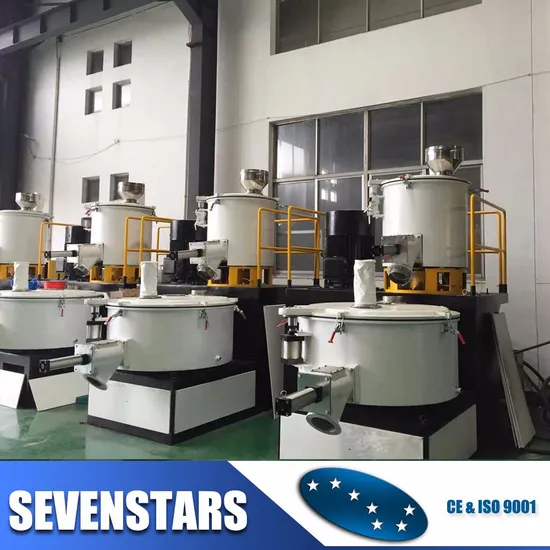

SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.

Main Technical Parameter:

Model/specs	SRL-Z100/200 Hot mixing/cold mixing	SRL-Z200/500 Hot mixing/cold mixing	SRL-Z300/600 Hot mixing/cold mixing	SRL-Z500/1000 Hot mixing/cold mixing	SRL-Z800/1600 Hot mixing/cold mixing
Total cubage(L)	100/200	200/500	300/600	500/1000	800/1600
Effective cubbage(L)	65/130	150/320	225/380	375/650	600/1050
Mixed speed(r/min)	650/1300/80	475/950/80	475/950/80	430/860/60	370/740/50
Heating & cooling manner	electric heating self-friction/water cooling
Mixed time	8-12	8-12	8-12	8-12	8-12
Motor Power	14/22/7.5	30/42/11	40/55/11	47/67/15	60/90/22
Dimension(L×W×H)(mm)	1950×1600×1800	4580×2240×2470	4800×2640×2480	4600×3000×4050	5170×3200×4480
Weight(kg)	2200	3400	3600	4800	6200

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.
We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.
As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.
Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
