ERW High Frequency Tube Mill Machinery for The Production of Iron Profiles Square/Round Steel Pipe Making Equipment

Product Description

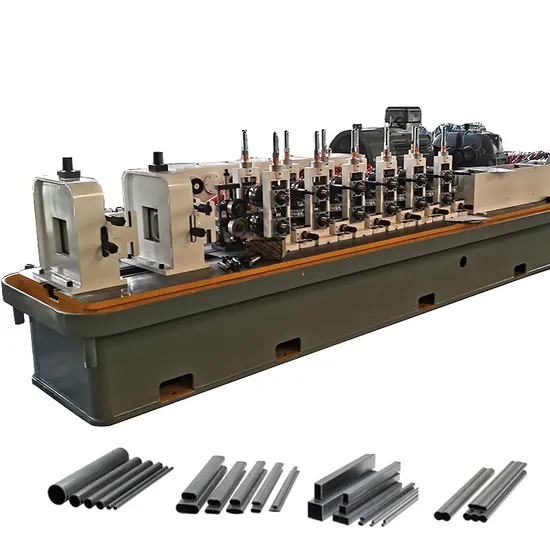

ERW High Frequency Tube Mills Roll Forming Welding Machine
Product Description
PROCESSING OBJECTS AND REQUIREMENTS
Purpose: The equipment is mainly used for polishing the outside surface of the stainless steel
The workpiece range requirements:
1.Workpiece diameter range:19-76mm
2.Workpiece length range:6000mm
3.Final surface roughness:Ra 0.1 (Through surface friction many times)
4.Final finish requirements: Grinding and polishing
EQUIPMENT MAIN STRUCTURE AND PROPERITIES
The equipment mainly consists of one set of grinding head, a set of planetaryrotation system, a set of electrical control, a set of feeding system, a set of workpiece
receiving (releasing) mechanism, a set of dust removal system (optional).
1.Grinding head:
The machine is equipped with one set of grinding heads that can be used to polish the outside surface of the workpiece .According to the grinding
characteristics of the workpiece, use the abrasive belts as the grinding material. The grinding head consists of one polishing head motor, a support mechanism, a power drive mechanism, and a mounting plate.
2.Planetary rotation system:
The main function of this mechanism is to provide the required rotating motion of the grinding head during polishing. Motor power is
transmitted to the turnable through the V-belt to directly drive the turntable to rotate.It consists of a motor, turnable and a transmission device.
3.Electrical control:
The system's role is to input instructions, control of the machine movement to achieve control, mainly by the console and the electronic
control cabinet, inverter and various low-voltage electrical components.
4.Feeding system:
Feeding system is used for automatic feeding of straight tube polishing.It consists of roller, feeder ,backlash adjusting screw and motor drive
system.
5.Workpiece receiving (releasing) mechanism:
This is for supporting workpieces during straight tube polishing.It consists of adjusting screw, rubber wheels and pallet.
6.Dust removal system (optional):
The role of this system is to collect the dust generated during the grinding process, to solve the dust collection, easy maintenance
and cleaning. It is mainly composed of a cyclone dust collector, a bag vacuum cleaner, and dust collection pipes.
TECHNICAL PARAMETERS
Main technical performance parameters of the machine:

No	Project	Reachability Indicators
1	Effectively polished diameter(mm)	19-76mm
2	Effectively polished length (mm)	6000
3	Final surface roughness	Ra 0.1(Through surface friction many times)
4	Dust emission treatment	Meet national standards (optional)

Work environment requirements:

1	working environment temperature	0-60ºC
2	Relative humidity	<90%
3	power supply voltage	AC three-phase 380V
4	Power Frequency	50HZ
5	input power	<10KW

Model List
MAIN COMPONENTS AND ACCESSORIES MANUFACTURER
The main components

	Components	Quantity	Manufacturer
1	Grinding head	1 Set	ADV Polishing
2	Planetary rotation system	1 Set	ADV Polishing
3	electric control system	1 Set	ADV Polishing
4	Dust removal system (optional)	1 Set	ADV Polishing
5	Workpiece receiving (releasing) mechanism	2 Set	ADV Polishing
6	Feeding system	2 Set	ADV Polishing

The main accessories

	Accessories	Model	Quantity	Manufacturer
1	Grinding head motor	5.5KW	1 Set	WN(Famous in China)
2	Feeding motor	0.37KW	2et	ZD(Famous in China)
3	Planetary rotation motor	1.5KW	1 Set	ZD(Famous in China)
4	Reducer		2 Set	ZD(Famous in China)
5	Inverter	0.75Kw 5.5KW	2 Set
6	Electric item		1 Set	Chint(Famous in China)
7	Electrical console		1 Set	ADV Polishing

FAQ
1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim. 2. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service 3. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time. 4. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time 5. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us Our Service
1. OEM DESIGN AND PRODUCTION:
Our active engineer and design team can make the special machine according to your special requirement. 2. DELIVERY IN TIME ASSURANCE:
We assure the machines you ordered will be delivered at promised time
3. FREE INSTALLATION AND TRAINING:
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training, installation operation video provided.
