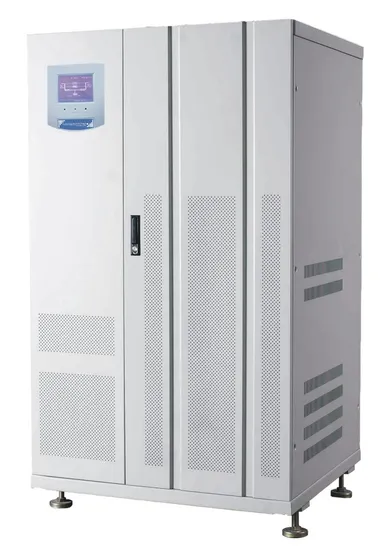

Large Power 80kw 3 Phase Pure Sine Wave Inverter

Product Description

BNS 10k - 320kW 3/3 Phase Pure Sine Wave Inverter
BNS transformer based, three phase hybrid solar inverter system is a pure sine wave inverter with isolated transformer. It can combine multiple power sources (such as utility power or a generator) to deliver non-intermittent, reliable and high quality AC power for government, pastorals, hospitals, banks, airports, pastoral areas, boarders, islands, communication base station, industries, etc. with a multi-energy-powered solution. The modular design with flexible configuration brings customers the optimized social, economical and environmental benefits.
Features:
A). Pure sine wave output, true on-line dual conversion design
B). Adopt 4 layer PCB, and SMD technology
C). High efficiency IGBT (insulated gate bipolar transistor) inverter technology
The 6th generation low-exhaust and big-power IGBT with excellent high speed switch feature, high voltage feature and large current feature. Drives by electric voltage, only need small control power. The 6th generation with lower saturation voltage, the inverter has high efficiency, low temperature, high reliability.
D). Touch screen display, with the simple operation and intuitive data, optional display language and logo
E). Set the work mode on the display directly, Inverter mode, UPSmode, ECO mode, EPS mode
F). Intelligent detecting function
This system microprocessor can continuously detect power status online, the breaker status and all the working status of the circuit.
G). Premium load feature
It is completely capable to load from 0-100% while no need to change to bypass, which make sure the output reliable.
H). Cold start function
When mains failure, can directly use the battery to start the UPS until the battery discharge to low voltage, when mains recover, can self start UPS.
I). Intelligent communication
With RS232 and RS485 standard collocation, optional SNMP and dry contact
J). Perfect protection
Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
K). Selectable battery inspection module
Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.
L). High-powered dynamic feature
Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment, but also reduce the output voltage distortion.
M). Optional input harmonic filter or 12 pulse rectifier
Effectively restrain the input THD, raise UPS input power factor and reduce the input THD current.

Model name MODEL		BNS-10KW	BNS-15KW	BNS-20KW	BNS-30KW	BNS-40KW	BNS-60KW	BNS-80KW	BNS-100KW
Rated power Capacity		10KW	15KW	20KW	30KW	40KW	60KW	80KW	100KW
Efficiency		>85%			>90%
Battery volt		384VDC
Unit dimension L×W×H(mm)		660×550×1250				780×700×1520
Weight/Kg(netweight/Gross weight)		220/230	230/265	270/305	330/365	360/410	430/480	500/550
General specification
Input	Voltage	380V/400V/415V±20%(Three phases and four wires)
	Frequency	50 Hz±10%/60Hz±10%
Output	Voltage	Three phases and four wire-380V/400V/415V±1%(Static ) 380V/400V/415V±3%(Loading0-100%)
	Frequency	50 Hz±0.05%/60Hz±0.05%
	Overload capacity	130%10Ms 130-150% 60Seconds
	Crest ratio	3:01
	Degree of distortion THD	<3%(100%Linear loading)Harmonic distortion of The Phase voltage main Wave(Linear load)
	Output waveform	Pure sine wave
	100% Unbalanced load	continuous Operation
	Power factor	0.8-1(Lagging)
Protection		Battery over-charge,Battery discharge,Battery reversed,Solar reversed,Reversed charge,Overheating,Output overload
Battery	Charge current	6-30A
	Battery volt	408v
Display	LCD	(Big screen dot-maxtrix display operating status\ operation menu\voltage\current\parameter\model)
	LED	Inverter Operation status\Utility power faulty\UPS faulty
Communication port interface		RS232/RS485
Operating Environment		Temp:-10~50ºC Relative humidity 0-93% non-condensing Operating altitude ≤3000m
Noise level		<68dB
