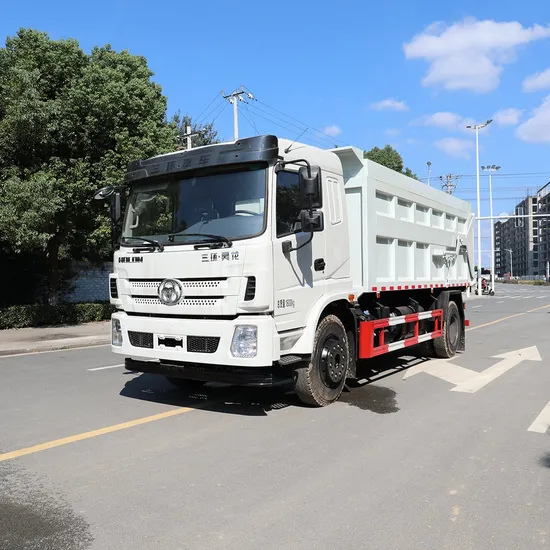

Tri-Ring Van Garbage Compactor Truck Self Dumping Compartment Garbage Truck for Municipal

Product Description

Tri-Ring Van Garbage Compactor Truck Self Dumping Compartment Garbage Truck For Municipal Product Description
Box Garbage TruckThe box-type garbage truck is mainly composed of a car chassis, a box body, a door opening mechanism, a lifting mechanism, an electro-hydraulic control system, etc. It is a new type of fully sealed garbage transportation vehicle with integrated mechanical, electrical, and hydraulic structures. It can be used in conjunction with the LSY series garbage stations.
It is a new type of sanitation vehicle for municipal sanitation to collect, transfer, clean, and transport garbage, and avoid the leakage of garbage to form secondary pollution that affects the city's appearance.
Product Parameters

Box Garbage Truck
Manufacturing Company Name			Hubei Sanhuan Automobile Co., Ltd.
Vehicle Model			RRR5180ZXLST6 Box Garbage Truck
Basic Vehicle Parameters	Drive Type		4×2
	Total Mass (kg)		18000
	Curb Mass (kg)		8200
Vehicle Appearance Parameters	Length (mm)		8070
	Width (mm)		2550
	Height (mm)		3060
	Wheelbase (mm)		4700
Performance Parameters	Maximum Speed (Km/H)		89
	Maximum Climbing Grade (°)		30%
Chassis Configuration Parameters	Engine	Engine Emission Standard	Euro II, III, IV, V, VI
		Manufacturer	Guangxi Yuchai Machinery Co., Ltd Weichai Power Co., Ltd.
		Displacement (L)	4.3L-6.2L
		Rated Power (kw)	162-180
Chassis Configuration Parameters	Cab	Type	Half-High Roof Comfort Version Cab
		Model	T280 (2.25 Wide)
		Standard Configuration	Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Sundries Box, Multi-Function Steering Wheel, External Sunshade
	Transmission	Gearbox Type	Manual, 8 Gears
	Front Axle	Type	Drum Brake
		Loadable Mass (kg)	3600
	Rear Axle	Type	Drum Brake
		Loadable Mass (kg)	10000
		Speed Ratio	5.143
Chassis Configuration Parameters	Frame	Cross-Sectional Dimensions (mm)	250×65×(6.5+5)
	Leaf Spring	Number Of Plates	9 Front Springs, 10+8 Rear Springs
	Tire	Type	Wire Tire
		Quantity	6
		Model	10.00R20-18
	Steering System	Type	Adopt A Hydraulic Power Steering System
	Braking System	Brake Type	Drum Brake, With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Break
		Parking Control Type	Hand Brake Operation
	Electrical System	System Voltage	24V
		Battery	100AH Dual Battery
Top Configuration Parameters	Trash Bin	Applicable Trash Bin Size (mm)	5500X2300X1500
		Dump Lift Time (S)	≤45
		Dump Lower Time (S)	≤45
	Other Configurations	The Lifting Cylinder Is Produced By A Well-Known Domestic Hydraulic Parts Manufacturer, With Multi-Way Valve Hydraulic Control, The Operator Manually Controls The Lifting And Lowering Of The Tailgate Of The Garbage Bin, And Has A Self-Unloading Function
Other Configuration		Warning Triangle, Tool Kit, ABS, Air Conditioning.

Detailed Photos
Good Sealing Performance. It is the basic requirement to ensure that there will be no dust or leakage during transportation.Good Safety Performance. The closed box cover cannot exceed the vehicle body too much, which will affect normal driving and form a safety hazard. The modification of the whole vehicle should be reduced to ensure that the center of gravity of the vehicle remains unchanged when loaded.Easy To Use. The top cover system can be opened and folded normally in a short time, and the cargo loading and unloading process is not affected.Small Size And Light Weight. Try not to occupy the internal space of the box body, and the deadweight should not be too large, otherwise it will cause a decrease in transportation efficiency or overloading. The reliability is also good, and the service life and maintenance cost of the entire closed box cover system will be affected.Working Principle Of Box Garbage TruckWorking Principle: Garbage is poured into the garbage bucket in the garbage bin, the scraper of the compression mechanism opens, and after the compression mechanism descends to the end, the scraper collects the garbage, and the compression mechanism goes up to press the garbage into the box, and the push plate in the box and the compression mechanism work together to compact the garbage. The compression mechanism repeatedly presses the garbage to a certain extent and uses the belly plate to push the garbage into the box to further compact the garbage. When the compression mechanism can no longer press the garbage into the box, it means that the box is full of garbage.
Technical Drawing
Company Profile
Researched by board of directors of Tri-Ring Group Company and approved by Hubei SASAC, Hubei Tri-Ring Motor Industrial Park was initiated on April, 28th 2010 and was put into operation in 2014 according to the revitalization plan of auto industry in Hubei Province and the twelfth five-year plan of Tri-Ring Group Company. The park is in an irregular rectangular shape, with a length of 1148m and width of 643-814m. It has a floor area of 718013m2 and building area of 470700m2.
Hubei Tri-Ring Motor Co., Ltd. has gained over 40 years experiences in the R&D of special purpose vehicles. It created a well-structured, highly competent and highly efficient R&D team which can meet with the trend of auto industry as well as the development demand of the company. Tri-Ring R&D center has been accredited as provincial enterprise technical center, High-tech enterprise, Engineering Research Center and Innovative enterprise etc. ever since 2010. It carries out long-term cooperation with renowned institutes and engineering companies like Wuhan University of Technology, Huazhong University of Science and Technology, TJ Innova Engineering & Technology Co., Ltd. etc.
The company has a national standard vehicle testing center, of which there are various testing facilities of 265 sets, fulfilling 35 different performance tests to chassis, complete vehicles and key auto parts in terms of power performance, fuel consumption performance etc.
The company possesses a flexible assembly line for heavy, medium, light duty traditional diesel chassis and new energy chassis (including subassembly of engine, gearbox and axles), as well as commercial vehicle production line relating to stamping, metal processing, welding, refitting and painting, which is capable of producing various commercial vehicles of 50,000 units annually.
The company has its own cabin factory. It has over 400 sets of equipment for stamping, welding, painting, assembly, metal cutting, heat treatment and power supply, of which there are over 60 sets of press machines of 10T-1300T and over 1000 sets of large scale and medium scale jigs and molds. The cabin factory is capable of developing and manufacturing cabins for heavy, medium, light and agricultural vehicles, with an annual productivity of cabins for 30,000 units heavy and medium vehicles, stamping parts for 800,000 units, and window glass regulators for 1,000,000 units.
Huanmin auto parts company is a wholly-owned subsidiary of Hubei Tri-Ring Motor Co., Ltd. Huanmin is mainly engaged in the manufacturing of parts for auto chassis, of which frame is its key product. Its current annual productivity of frame is 20,000 units.
The company has a comprehensive and mature sales network of over 200 distributors and service network of over 500 service stations all over China. Besides, its products are widely exported to overseas market including South America, Southeast Asia, Africa, Middle East etc. Worth to mention, its electric vehicles were exported to South America in large quantities.
FAQ
Q1. Is your company a factory or a trading company?A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.Q2. What are your payment terms?A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.Q3. What are your delivery terms?A: EXW, FOB, CFR, CIF, DAF, DDU.Q4. How about your delivery time?A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.Q5. Can you customize the products to meet my requirements?A: Yes. We have a professional R&D team, and we can produce products exactly as you require.Q6. What is the price of your products?A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!Q7. Do you test all the goods before delivery?A: Yes, we do 100% testing before delivery.Q8. What service can I get from you?A: We provide lifetime tracking service and a one-year free warranty for all our products. At the same time, we provide free training and technical support to guide you to repair the product. We will also provide original spare parts if necessary, and you only need to pay the shipping cost.
