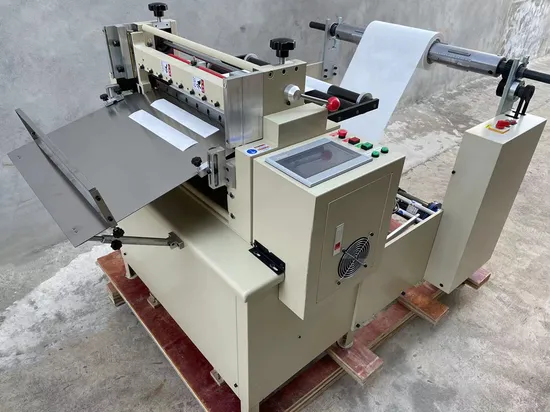

Roll to Sheet Cutting Machine

Product Description

Roll to Sheet Cutting Machine
Technical specifications:
1. machine blade made from hchcr material ( high carbon high chromium steel )
2. machine body material : casting ( c. I )
3. paper material : craft, duplex ,binding paper
4. machine working capacity : 150pcs/min
5. paper weight:60 gsm to 400 gsm
6. main roll diameter :45" ( 1140 mm )
7. machine blade width :16" ( blade width will be vary as per machine size )
8. machine operated with touch screen
9. machine having one roll stand in c. L material
10. in exta : jogger system , slitter system and roll stand
( cost of all extra items will be varying as per size and quantity )
Application:
Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form. To cut roll material to sheet material.
Optional:
1.Static electricity eliminator
2. Conveyor belt
3. Color sensor

Main Technical Parameter:

Model	LT360B, LT500B, LT600B, LT700B, LT1000B
Cutting Width (mm)	360, 500, 600, 700, 1000, customized
Cutting Length (mm)	0.1~9999.9mm
Cutting thickness (mm)	0.5-20mm
Cutting speed	0-100pcs/min
Cutting precision	0.02mm
Motor	2 servo motors
Power	1.5KW
Voltage	220V/380V, customized
N.W./GW.	260/280KG
Measurement	960x1020x1150mm

Features:
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting, equipped with automatic unwinding system and air shaft, which will be easy to load and unload.
1. The max width: 360, 500, 600, 800, 1000, customized
2. Tolerence: 0.05mm, Precision: 0.02mm
3. Material thickness: 0.5mm-20mm
4. Cutting speed:200 cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. Eye mark device for optional
9. An air shaft as the loading shaft;
10. Two accessories, static eliminator and conveyor belt, for you to choose
11. Automatic unwinding function;
12. Cutting length is accurate;
13. Operation is easy;
14. Waste rate is low;
15. Diverse functions satisfy your various requirements;
16. We offer superior-quality products and best service for you;
17. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
