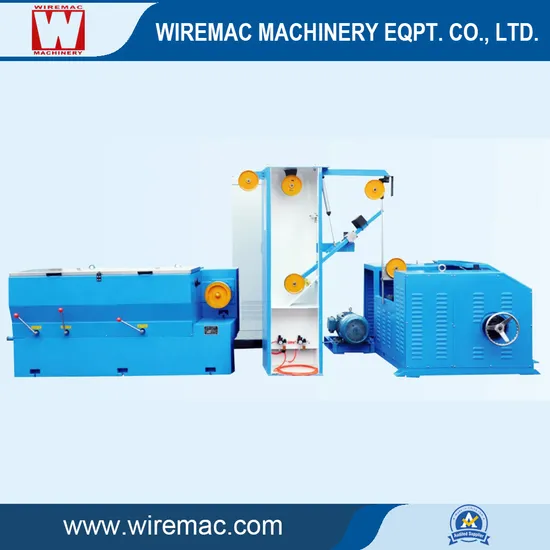

Copper Wire Drawing Machine for Large / Intermediate / Fine Aluminum / Copper Wire Drawing Machine for Rod Breakdown Machine

Product Description

Copper Wire Drawing Machine for Intermediate Aluminum / Copper Wire Drawing Machine for Rod Breakdown Machine Product Description
Introduction:
The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop.
Intermediate Wire Drawing Machine:
Characteristics
1. Automatic tension control by DC dual-inverter.
2. High prodctivity small power conumption. 3. High precision gear drive with low noise.
4. Widely used imported advanced parts and components ensure high reliability.
Product Parameters
Technical Parameters

Name	ZL250/17	ZL250/21
Power Control	Dual Inverter
Inlet Diameter	2.6 - 3.0 mm	2.6 - 3.0 mm
Oulet Diameter	0.4 - 1.2 mm	0.4 - 1.2 mm
Line Speed	1800 m/min	1800 m/min
Max Die Number	17	21
Mechanical Elongation Rate	25% + 18.7%	18.4% + 15%
Structure of Machine Body	Casting + Steel plate welding and annealing
Capstan	Ceramic tower
Capstan Diameter (Max)	250mm
Take-up Bobbin Size	400 / 500 / 630 mm
Air Consumption	20 - 30 m3/h, 0.4 - 0.6 MPa
Drawing / Take-up Motor	AC 55KW / AC 11KW
Drive	Gear Drive
Electric Control Type	PID dual inverter automatic control
Tension Control	Air pressure adjustment type tension
Max Copper Load	200kg, (500kg)
Power Supply	380V - 480V, 50Hz / 60Hz
Volume of Lubrication	40 L/min
Lubrication Type	Lubrication by full immersion
Brake	Disc type brake
Machine Dimension	L9000 x W3000 x H3500 mm
Machine Weight	5000 KG
