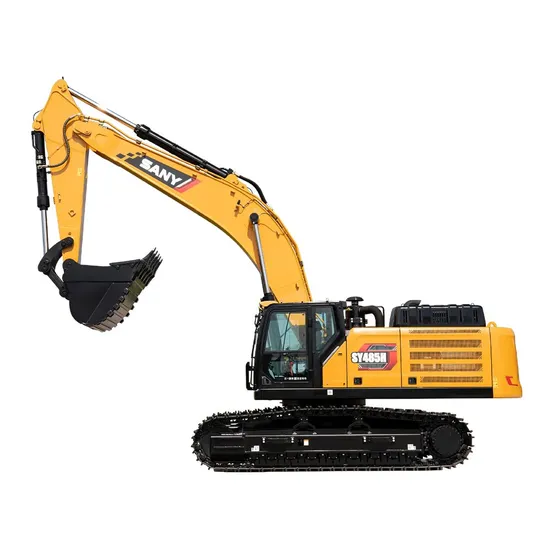

Large Hydraulic Crawler Excavator Sy485glc-S Sy485h-S 48-50 Tonne 48500 50000 Kg 2.6-3.1 M3 Rock Bucket 343 Kw 2100 Rpm Cummin Engine Ripper Hammer Breaker

Product Description

Large hydraulic crawler excavator SY485GLC-S SY485H-S 48-50 tonne 48500 50000 kg 2.6-3.1 m3 rock bucket 343 kW 2100 rpm cummin engine ripper hammer breaker
For loading capacity 97.8 tonnes or 125 tonnes excavators, please contact us.
Product Parameters
Quick Fact DIMENSIONS

Operating weight	48000 /48500 / 50000 kg
Standard bucket capacity	2.6-3.1 m³
Shipping length	11615 mm
Shipping width	3740 mm
Height over cabin	4195 mm

HYDRAULIC SYSTEM

Type	variable piston pump
Displacement	2*230
Hydraulic pressure	34.3 Mpa

WORKING RANGE

Max. digging depth	6694 mm
Max. digging reach	11654 mm
Max. bucket digging force	270 kN
Max. arm digging force	250 kN

Product Description
Features and Benefits
1.More Durable and Reliable
NM400 wear-resistant steel is used for bucket side plates and toughness plates to improve bucket wear resistance.
For mining-type working devices, the key supporting parts are integral casting and forging structures, and the average stress is 10-13% lower than that of competing
H swing arm and 14-30% lower than that of bucket rod.
Large box-type double-support rotary platform, with an increase of bearing capacity by 30%.
The 60-ton four-wheel area is adopted, the shaft diameter is increased to reduce the bearing surface pressure, and the bearing capacity is increased by 30%.
Based on durability test system for excavator parts in China and in conjunction with internationally renowned research institutions,
research on the life of parts has been carried out to comprehensively improve the life of core parts, doubling the service life of pumps, valves, oil cylinders, reducers, oil tanks, cab machines and other parts.
The heat radiation efficiency is increased by 20%, the working temperature of the system is reduced by 8-10°C compared with that of ordinary excavators, the adaptability to high temperature environment is greatly improved, the service life of rubber parts is increased by 30%, and the energy saving rate is 30% higher than that of the integral heat radiation system.
With right-angle plate-fin fins, the air duct area is greatly increased, and the heat radiation efficiency is 20% higher than that of ordinary radiators; the pressure resistance of the radiator is improved by 10%, and the service life is longer.
Rigorous machine test
2, More intelligent and comfortable
3, More efficient and fuel saving
The ICT-integrated control technology mainly includes E-P, P-V, FD, and ECA technologies, i.e. matching technology between engine and main pump, main pump and main valve, flow distribution technology, electronic control auxiliary technology, swing arm unpowered lowering technology, and independent oil and water radiation control. The efficiency of the machine is equivalent to that of competing products, but the fuel consumption is reduced by 5-13%.
4, Low maintenance costs
Through years of market verification, the excavator's maintenance cost is reduced by 50% and the customer maintenance period is doubled; Maintenance costs are 40% lower than those of competing products. Our Advantages

No trouble sourcing for different machines, one stop for you, genuine products in famous factories and after services.
We supply the machines, you just boost your business steady and safely with them at lowest prices.
Here Best cost-performance excavators and other machines, supplied to you.
Other brands and models of excavators against your specificaitons.
FAQ
1. Can excavators be tested before ordering?
-Yes, of course.
2. Can matched machines be tested and purchased at one stop?
-Yes, that is why we stay here for you.
3. What bout the after sales services?
- Every excavator or other products, will be serviced at your applications spot by local teams.
Haul trucks / off-road trucks, DTH surface drill rigs, Tophammer surface drill rigs, dozers, loaders, crushers etc., all could be supplied according to your requirements.
Any more question, please feel free to contact us.
