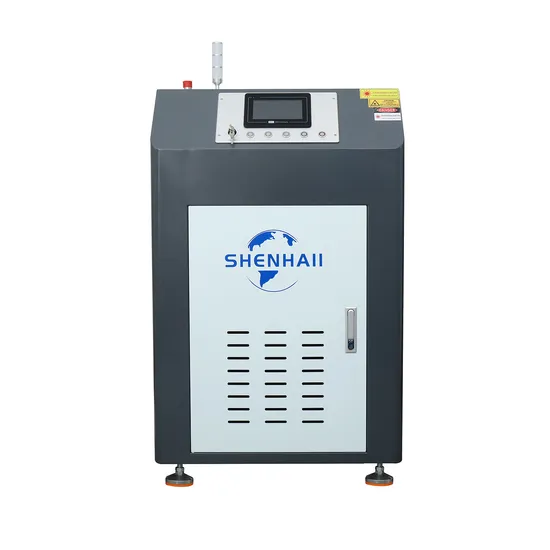

Jez PVD Coating Laser Cleaning Machine Laser Coating Remove

Product Description

JEZ pvd coatings laser cleaning machine designed and manufactured according to Europe mechanical design requirements .
The laser cleaner using field lens mode, the laser output is more stable and higher efficiency .
Machine using short pulsed fiber laser which with lowest heat affect ,no damage to base material after laser cleaning .
Specifications (For Reference):

Laser Power	200W
Power Supply	1PH / 220V±10% / 50-60HZ
Cooling Way	Water cooling
Power consumption	2500W
Length of fiber cable	5 meters
Laser Beam Width	150-500mm(Option)
Laser Beam types	4 different types
Cleaning Head	2D handheld Clean Head
Weight Of Cleaning Head	0.7 KG
Cleaning Head Emergency button	Yes
Max Scanning speed	45,000mm/s
Air Blow function to protect Focus lens	Yes
Air Blow function to improve working efficiency	Yes
Scanning Mode	F-Theta
F-Theta Option	F254 / F300
Size Of Machine(mm)	1240 x 780 x 1258
Net Weight Of Machine	248KG

Product feature :
1. Large laser spot, high single pulse energy fiber laser
2. Simple operation and efficient multiple laser cleaning patterns
3. Multiple safety operation locks ,can store multiple sets of working parameters
4. 3-colors work light self-test function
5. Hand-held cleaning head emergency stop button to cut off laser output in time if any emegency situation
6. Each core component of the machine (laser, water tank, control card, etc.) has a separate circuit protection
7. Alarm feedback of core components (water tank, laser, cleaning head, etc.) to the screen
8. Most of the circuit components are imported brands, which are more durable and stable
9. No damage to base material ,high max single pulse energy
10. No need for chemicals and other media, green and environmentally friendly cleaning method
Applications:
1. Online maintenance of precision molds, etc., without disassembly to improve production efficiency
2. Efficiently metal surface coating cleaned to eliminate the harm of chemicals to the environment
3. Painting of wooden doors and windows, houses, etc., as well as soot cleaning after fires, dry cleaning to prevent mold
4. Automotive industry parts rust and paint removal, replacing traditional processes
5. Cleaning of oil, oxidation and other residues on metal surfaces
6. Injection mould ,shoes mould......daily maintenance
