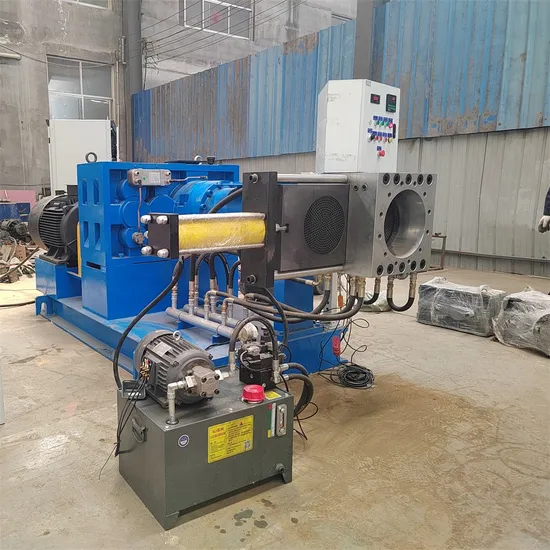

Xjd-120 Cold Feed EPDM Silicone Rubber Extruder Machine

Product Description

Product Parameters

Hot Feed Type	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw Dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw rotational speed(r/min)	20.27/35.47	27.40/53.72	20~60	27~81	22.4~67.2	19.7~59.1
Motor Power(KW)	7.5	17	30	15.3~55	33.3~100	33.3~100
Dimension L×W×H(mm)	1600×675×1053	2050×735×1275	2770×665×1300	3585×814×1470	4549×1140×1750	4950×1150×1483
Capacity(kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(Ton)	1.5	2.6	3.3	4.5	7.21	9

Cold Feed Type	XJD-45	XJD-60	XJD-75	XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw Dia.(mm)	45	60	75	90	120	150	200	250
L/D	8-12	8-12	8-14	12-16	12-16	12-18	12-18	12-18
Screw rotational speed(r/min)	~70	~80	60	~60 (55)	~50	~45	~33	~26
Motor Power(KW)	12~22	18.5~22	37-45	45~75	75~110	160~250	220~355	355~450
Dimension L×W×H(mm)	2165x1100x1600	2200x1310x1400	2300x1150x1600	3360x1150x1450	3750x1600x1550	5200x1650x1600	7150x1950x2300	8500x2450x2600
Capacity(kg/h)	15-25	80~150	100-180	250~350	600~800	1000-1500	1600-2500	2800-3500
Total weight(Ton)	1.2	1.8	2.1	3.0	4.2	5.35	9.8	~15

Product Description Features:
1: The material of the screw is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.
2: The material of bush is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.
3: The motor of the equipment is direck current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.
