Gas Station Leak Detection System Tank Interstice Oil Leak Sensor

Product Description

Product Description
Gas Station Leak Detection System Tank Interstice Oil Leak Sensor
The leak detection system is specifically designed to monitor the leakage of fuel and water in the interstitial of double-wall tanks and double-wall pipelines, tank sump and pump sump, distinguish of the existence of water and oil, and remind by audible-visible alarm.

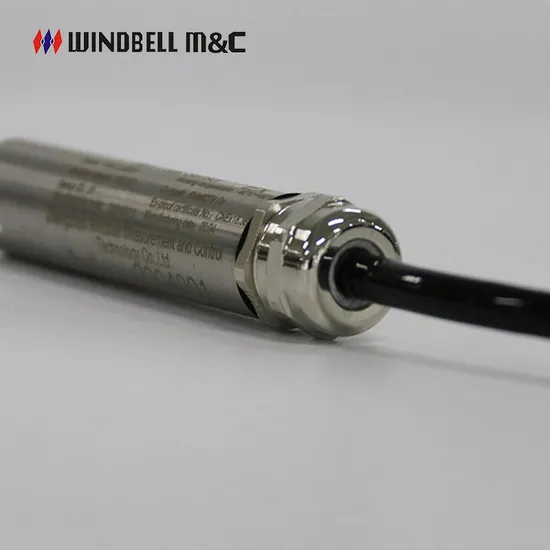

CLS200 series leak sensor adopt optical type principle, can detect and identify water and fuel leakage of tank interstice, pipe interstice, tank sump and dispenser sump.



Product Advantage
Product Features Compact structure and artistic appearance. Easy to install and maintain. Explosion-proof design, safe and reliable. Can connect with 12 sensors. Support to connect with Float switch leak sensor. Can connect with switch volume leak sensor or RS485 type leak sensor. Can identify fuel and water, and then give corresponding alarm. Communication failure alarm function. Leak sensor fault alarm function. LED alarm prompt function. With mute button, can eliminate sound alarm when alarm occurs but do not affect light alarm. Can communicate with host computer, and display leak detection information on PC software. Support to integrate with Tank Gauging system. Product Parameters

Power supply of controller	AC220V, +10%, -15%
Working temperature of controller	-20ºC~+60ºC
Working temperature of sensor	-40ºC~+60ºC
Relative humidity	30%~90%
Operating current	<35mA
Response time	<2S
Alarm type	LED, audible-visible
Alarm mode	Sound-light alarm
Explosion-proof mark of controller	[Exia Ga] IIB
Ex-proof mark of sensor	Ex ia IIC T4 Ga
Controller monitor sensors	Up to 12
Intrinsic safety parameter	Power port: Ui=12.6VDC, Ii=291mA, Pi=0.92W, Ci=1.6uF, Li=0mH; Signal port: Ui=7.14VDC, Ii=147mA, Pi=0.26W, Ci=0.11uF, Li=0mH.
