20 Liter Crop Duster Uav Carbon Fiber Material Sprayer Agriculture Drone

Product Description

20 Liter Crop Duster Uav Carbon Fiber Material Sprayer Agriculture Drone

Axis No.		4axis
Capacity		20L/20kg
Net weight		24kg
Take-off weight		55kg
Nozzle:		2 pcs centrifugal nozzles
Spray Width		7-9m
Spray Efficiency		9-12 hectares/hour
Spray flow		3.5-4 L/min
Fly time		10 mins
Spray speed		0-10 m/s
Battery		14S 22000 mAh smart battery
Charger		3000W 60A smart charger
Wind resistance		10 m/s
Flying height		0-60 m
Flying radius		0-1500 m
Spread size		2400*2460*630mm
Folded size		955*640*630mm
Package size		1460*770*900mm
Packed weight		85kg

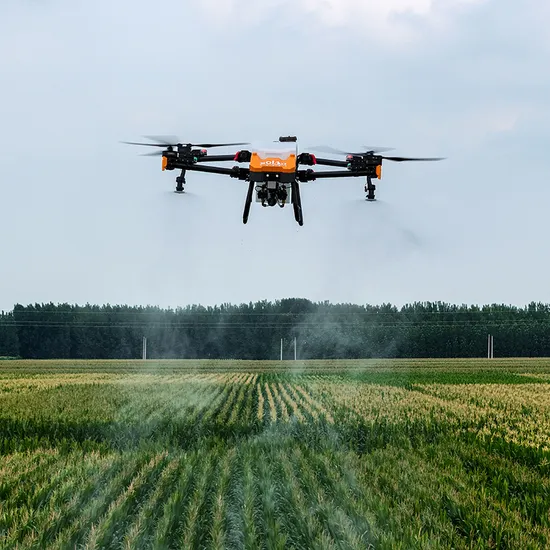

The A4-20 agricultural drone is powerful, capable of spraying 20 kg and sowing 20 kg.lt has a newly designed fuselage and sowing system, and can operate in all scenarios day and night.
AL4-20 Rich working scenarios:
Farmland spraying/Fruit tree spraying/Mountain work/ Farmland sowing/Epidemic prevention/Aquaculture
Plant Protection Power System:
Strong power / High degree of coordination / Independent research and development
New upgraded motor, greatly improvedpower output:
Max Current 120A / Power Redundancv 11%↑ / Reduced Energy Consumption15%↑ / Flight Time 16%↑
40-inch large propeller blades:
Higher flight efficiency and longer flight time per unit, More in line with the crop protection market
Built-in storage chip:
Flight data can be recorded before problems occur, allowing for precise maintenance.
Self-developed FOC:
electric regulation The algorithm control is more precise and the flight response of the whole aircraft is more sensitive.
Electric power system
Intelligent Distribution Board
Through the CAN bus, it can be collected and stored the data of the drone components, such as batteries, flight control, and anti-spark modules to ensure flight safety. Once a problem occurs, the software can be used to analyze and solve it quickly
80%↑ Water repellency
Adopt integrated glue filling process to increase the waterproof level.
Adopt the power signal plug of automotive-grade and the press type gold plug connector to avoid the virtual welding.
Come with Bluetooth module, can be monitored in real time through APP.
The battery protocol can be opened,and control the power on and off of the battery.
Aircraft skeleton
All-aluminum structural frame
Pin + screw dual connection method is more solid, stronger bearing capacity (150KG without deformation)
Plug-in + screw connection structure, higher connection strength and stronger impact resistance.
Quick Bayonet
Wraparound locking structure Smart return to home for safe flying
Adopt one piece casting aluminum molding and is equipped with an enveloping locking structure,ensure the more stable flight.
Professional UAV Manufacturer
Aolan drone is the first batch of high-tech enterprises since established in 2 0 1 6, committed to agricultural technological innovation and development. We have our own professional R&D team with rich experience and have already obtained C E, F C C, RoHS, I S 0 9 0 0 1, and 18 patents. With strong professional capacity and technical force, stable quality, and timely delivery, support O E M and O D M service. Our sprayer drones are mainly used in the agricultural field. It can spray liquid chemical to prevent crop diseases and spread granule fertilizers for crop. Our drone has the functions of autonomous flight, A B mode flight, avoiding obstacles automatically and terrain following flying, real-time image transmission, cloud storage, intelligent and efficient spraying etc. We self-developed power systems and high redundancy motors, specially designed for plant protection, easy to operate, and more stable performance, Our company is committed to building a complete Agriculture Sprayer Drone supply chain to provide professional and efficient plant protection products. At present, our drones have spread to more than 50 countries overseas and have won unanimous praise. To better serve global customers, the company continues to expand its market share. We welcome agents and distributors to join Aolan for mutual success and to achieve win-win.

FAQ
Q1. Can I have a sample order for agriculture drone?
A: Yes, we welcome sample order to test and check quality. MOQ>=1
Q2. Are you sprayer drone factory?
Yes, we are a professional manufacturer of agricultural spraying drones. We support OEM/ODM.
Q3. What's your payment term?
A: 50% deposit, balance before delivery. We accept T/T, credit card, paypal etc.
Q4. What's the delivery time of sprayer drone?
A: 2-3 working days for one, please contact us for mass order.
Q5. How to buy?
A: Please contact our sales in this page and our sales will guide you.
Q6.How to be your distributor/dealer/agent?
A: We are looking for agent all over the world. Pls contact our sales for detail
