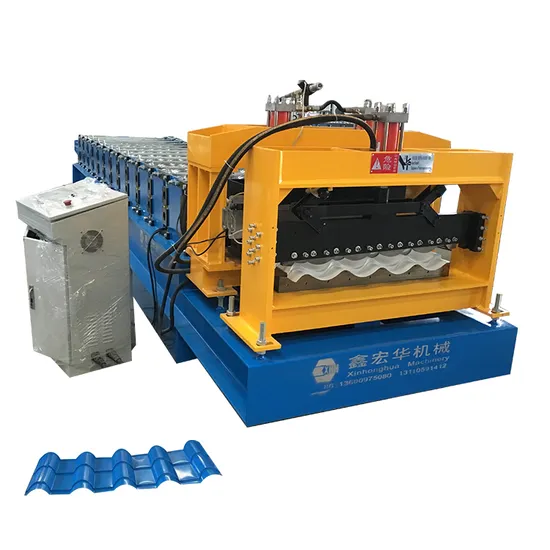

Zinc Roof Forming Machine
| US$20,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YX37-840
Tile Type
Colored Steel
Certification
SGS
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Machinery
Motor Power
5.5kw
Material Width
1000mm
Effective Width
840mm
Material Thickness
0.4-0.6mm
Transport Package
Standard Package for Export
Specification
SGS
Trademark
XHH
Origin
Xiamen, China
HS Code
84552290
Production Capacity
22sets/Months
Product Description
Colored Metal Glazed PPGI Tile roof Making Machine (YX37-840):Factory Lifetime Service:offer technical support for the entire life of our machines.
Customized Profile:can design the profile according to customer request.
One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
1. Specifications of the YX37-840 Corrugated Roof Tile Roof Panel Roll Forming Machine
1).Main Techincal Data:
| Model Number | YX37-840 |
| Size | 6000*1500*1600mm |
| Weight | 6500KGS |
| Motor Power | 7.5KW |
| Hydraulic Power | 5.5KW |
| Voltage | 380V/50HZ/3PH |
| Forming Steps | 13steps |
| Processing Speed | 4-6m/min |
| Thickness | 0.3mm~0.6mm |
| Feeding Material Width | 1000mm; |
| Effective Width | 840mm |
| Height of Roofing | 38mm |
Profile Drawings Dimensions of Machines in the Same Series
2). Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen
2. Pictures of roofing sheet making machine
3. Certifications of Product
4. Applications of Product
