Dongfeng DFAC 4WD Water Tank Tanker Fire Engine Truck

Product Description

Dongfeng DFAC 4WD Water Tank Tanker Fire Engine Truck
Fire Engine(also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximally .
Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck .
Dongfeng DFAC Double Cab LHD or RHD Cummins Engine 190HP 3400 Liters Water and 600 Liters Foam Tanker Fire Truck For Sales Technical date:

Product	Dongfeng DFAC Fire Engine
Cab	Double-row, four doors, rated passengers 6
Volume	Water tank6000~7000L foam tank 2000Litres
Chassis	Brand	DONGFENG
	Chassis model	DFL1160
	Drive type	4*2, LHD/RHD
	Tire	9.00-20
	Tire No.	6+1(spare)
	Braking System	Air braking
	Clutch	dry clutch, hydraulic remote control
	Transmission	6 forward gear,1 reverse gear,manual mechanical type
Engine	Model	Cummins B190-33
	Horse Power(hp)	190
	Displacement(cc)/Power(kw)	5900/140
	Emission	Euro2
Main Parameters	Overall dimension (L*W*H/mm)	8120*2480*3350
	Wheelbase(mm)	4500
	Axles No.	2
	GVW(kg)	15000
	Curb Weight(kg)	8550
	Leaf spring No.	7/9+6,8/10+8
	Approaching/Departure Angle	22/13
	Front/Rear trace(mm)	1880/1800
	Front/Rear suspension(mm)	1430/2130
	Max speed(km/h)	90
	Front/Rear Axle Load(kg)	5270/9730
Fire Pump	Atmospheric pressure pump	Type:BS30 firefighting pump,Flow capacity:30L/s,Pressure:1.0MPa
	Medium-low pressure pump	Type:CB40/10:low pressure Flow capacity:30L/s/1.0MPa;medium pressure Flow capacity:15L/S/2.0MPa
Fire Monitor	Type	SP80
	Shot Range	span>55m

Dongfeng DFAC Double Cab LHD or RHD Cummins Engine 190HP 3400 Liters Water and 600 Liters Foam Tanker Fire Truck For Sales Chassis brand :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

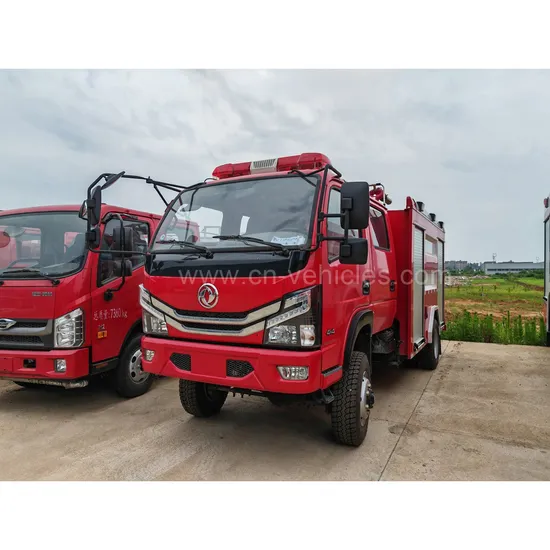

Dongfeng DFAC Double Cab LHD or RHD Cummins Engine 190HP 3400 Liters Water and 600 Liters Foam Tanker Fire Truck For Sales Truck Picture:
Dongfeng DFAC Double Cab LHD or RHD Cummins Engine 190HP 3400 Liters Water and 600 Liters Foam Tanker Fire Truck For Sales Application:
Customer visit:
