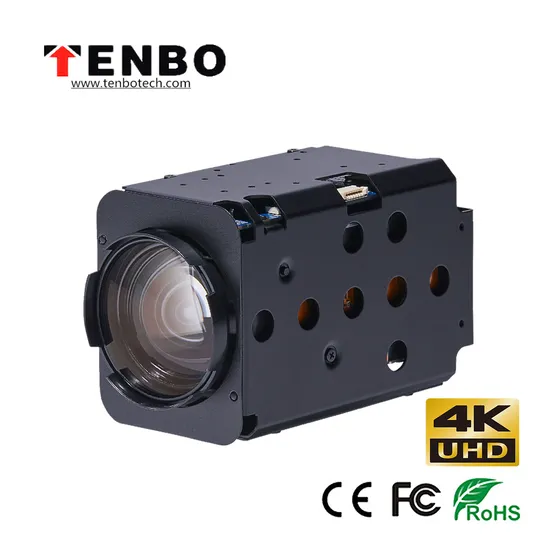

TENBO TB-SM9820 4K / 8MP UHD 20X Optical Zoom Sony CMOS VISCA Digital HDMI / CVBS Block Zoom Module Camera
Basic Info.
Model NO.
TB-SM9820
Type
Digital Camera
Sensor
CMOS
HDMI Format
2160P
Horizontal Resolution
4K
Kind
Autofocus Lens
Certification
CE, FCC, RoHS
Feature
High Definition, Auto BLC
Effective Distance
>2000m
Sensor Size
1/1.8 inch
Remote Control
With Remote Control
Image Sensor
Sony CMOS
Focal Length
6.5~130mm
Optical Zoom
20X Optical Zoom
Digital Zoom
32X Digital Zoom
Frame Rate
30fps
Video Out
HDMI / CVBS
Protocol
VISCA, Pelco-D/P
Illumination
Super Starlight
DNR
2D+3D
Defog
Support
Privacy Zone Masking
Support
Motion Detection
Support
Digital Image Stabilization
Support
Power
9-15V DC
Weight
293g
Transport Package
Standard Carton
Specification
50(W) x 62(H) x 97.9(D)mm
Trademark
TENBO
Origin
Shenzhen
HS Code
8525891900
Production Capacity
30000PCS/Year
Product Description
FEATURES• 1/1.8" 9MP Sony CMOS Image Sensor
• 2160P@30fps/25fps, 1440P@30fps/25fps, 1080P@30fps/25fps
• 20x Optical Zoom(f=6.5mm~130mm) & 32x Digital Zoom
• F1.60(wide) ~ F4.13(tele)
• Day & Night(ICR)
• Wide Dynamic Range
• Digital Noise Reduction(2D+3D)
• Digital Image Stabilization
• Privacy Mask Function
• High Light Compensation
• Intelligent Motion Detection
• Mirror, BLC, HLC, Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : HDMI, CVBS
SPECIFICATION
| Model No. | TB-SM9820 | |||
| Image Sensor | 1/1.8" Sony CMOS Image Sensor | |||
| Total Pixels | 3952(H) x 2320(V) = 9.17M pixels | |||
| Active Pixels | 3864(H) x 2176(V) = 8.41M pixels | |||
| Scanning System | Progressive Scan | |||
| Sync. System | Internal | |||
| Resolution | Digital: 2160P@30(25)fps; 1440P@30(25)fps; 1080P@30/25fps; 720P@30/25fps | |||
| Analog: CVBS | ||||
| Min. illumination | Color(1/30s, 72dB): 0.012 lux , BW(1/30s, 72dB) : 0.0019lux | |||
| Color DSS(1/1s,72dB) : 0.0012 lux , BW DSS(1/1s 72dB) : 0.00019lux | ||||
| Video Output | Digital : HDMI | |||
| Analog SD: CVBS | ||||
| S/N Ratio | more than 50dB (AGC off) | |||
| Lens Type | 20x Day & Night Zoom Lens | |||
| Zoom Ratio | Optical 20x, Digital 32x Zoom | |||
| Focal Length | f = 6.5mm ~ 130mm | |||
| Aperture Ratio | F1.60 (wide) ~ F4.13 (tele) | |||
| Angle of View (D, H, V) | Wide | 65.3° | 58.5° | 35.0° |
| Tele | 4.2° | 3.7° | 2.1° | |
| Focus Mode | Auto / One Push / Manual | |||
| Min.Distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m | |||
| Lens Refresh | One Push / 1~10days | |||
| Digital Zoom | Off / MAX 2x ~ 32x | |||
| Exposure Mode | Auto / Iris. Priority / Shut. Priority / Manual | |||
| AGC(Gain Control) | 0 ~ 10 steps | |||
| Shutter Speed | 1/1 ~ 1/60,000 sec | |||
| Iris(Ext-trigger) | Close ~ F1.6 | |||
| DSS(Digital Slow Shutter) | Off / 2x / 4x / 8x / 16x / 32x | |||
| Brightness | 0 ~14 steps | |||
| BACK LIGHT | Off / BLC / HLC | |||
| Day&Night | Auto / Day / Night / Ext-in | |||
| White Balance Mode | Auto / One Push / Manual / Indoor / Outdoor | |||
| DNR | 2D/3D, 2D+3D | |||
| Mirror | Off / H / V / H&V | |||
| Sharpness | 0 ~ 15 steps | |||
| Defog | Off / On(Auto / Manual) | |||
| Privacy Mask | Off / On ((Max.8 Points) | |||
| Motion Detection | Off / On (Max.4 Points) | |||
| Defect Detection | Off / On | |||
| System | NTSC / PAL | |||
| Communication | Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps | |||
| Protocol : VISCA / Pelco-D / Pelco-P | ||||
| Language | English / Simplified Chinese / Traditional Chinese / Japanese | |||
| Power Source | 9V to 15V DC | |||
| Power Consumption | 530mA @ DC12V | |||
| Power Input | Connector | |||
| Video Output | Connector | |||
| Operating Temperature | -10ºC ~ +50ºC (Humidity : 0%RH ~ 90%RH) | |||
| Storage Temperature | -20ºC ~ +60ºC (Humidity : 0%RH ~ 90%RH) | |||
| External Dimension | 50(W) x 62(H) x 97.9(D) | |||
| Weight | 293g | |||
